NB
TRK30GUUE NB 30mm Slide Bush Bushings Motion Linear Bearing
$1,043.10 CAD
$1,408.18 CADyou save $365.08 CAD
SKU: Kit21174
UPC: 00193019124802
UPC: 00193019124802
Item: TRK30GUUE NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 30mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 30mm
Retainer Material: resin
Quantity: One Bearing

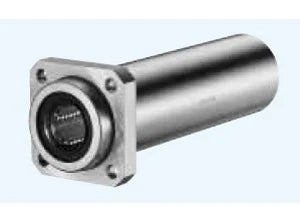

| TRK30GUUE NB Triple Wide Square Flange Pilot End Slide Bush Made in Japan:NB Linear Systems |
TRK30GUUE NB Triple Wide Square Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

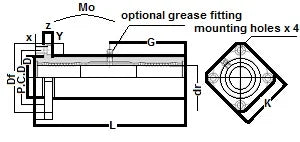

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 30 | 0-18 | 52 | 0-30 | 182 | 82 | 10 | 67 | 6,6 x 11 x 6,1 | |
