TRK50GUUE NB 50mm Slide Bush Bushings Motion Linear Bearing
$3,235.94 CAD
$4,368.50 CADyou save $1,132.56 CAD
SKU: Kit21177
UPC: 00193019124833
UPC: 00193019124833
Item: TRK50GUUE NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 50mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 50mm
Retainer Material: resin
Quantity: One Bearing

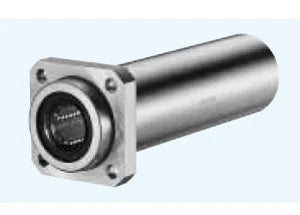

| TRK50GUUE NB Triple Wide Square Flange Pilot End Slide Bush Made in Japan:NB Linear Systems |
TRK50GUUE NB Triple Wide Square Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

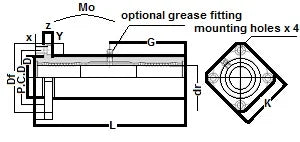

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 50 | 0-21 | 85 | 0-35 | 290 | 129 | 18 | 107 | 11 x 17 x 11,1 | |
