NB
TRKC12GUU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing
232,21 $ CAD 313,49 CADVous économisez 81,28 $ CAD
SKU: Kit21143
UPC: 00193019124505
UPC: 00193019124505
Item: TRKC12GUU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 12mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 12mm
Retainer Material: resin
Quantity: One Bearing
| TRKC12GUU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC12GUU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

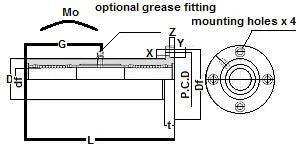

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 12 | 5-15 | 26 | 0-21 | 84 | 46 | 6 | 36 | 4,5 x 7,5 x 4,1 | |
