NB
TRKC16GUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
$293.12 CAD
$395.72 CADyou save $102.60 CAD
SKU: Kit21144
UPC: 00193019124512
UPC: 00193019124512
Item: TRKC16GUU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 16mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 16mm
Retainer Material: resin
Quantity: One Bearing
| TRKC16GUU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC16GUU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

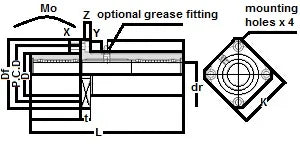

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 16 | 0-15 | 32 | 0-25 | 103 | 54 | 8 | 43 | 5,5 x 9 x 5,1 | |
