NB
TRKC25GUU NB 25mm Slide Bush Bushings Miniature Motion Linear Bearing
403,53 $ CAD 544,75 CADVous économisez 141,22 $ CAD
SKU: Kit21145
UPC: 00193019124529
UPC: 00193019124529
Item: TRKC25GUU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 25mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 25mm
Retainer Material: resin
Quantity: One Bearing

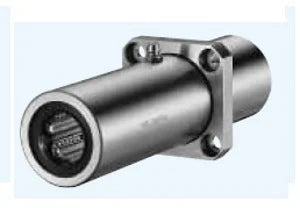

| TRKC25GUU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC25GUU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

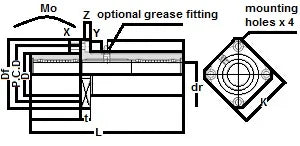

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 25 | 0-18 | 52 | 0-30 | 165 | 74 | 10 | 60 | 6,6 x 11 x 6,1 | |
