TRKC25UU NB 25mm Slide Bush Bushings Miniature Motion Linear Bearing
$820.39 CAD
$1,107.53 CADyou save $287.14 CAD
SKU: Kit21121
UPC: 00193019124284
UPC: 00193019124284
Item: TRKC25UU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 25mm
Retainer Material: steel
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 25mm
Retainer Material: steel
Quantity: One Bearing

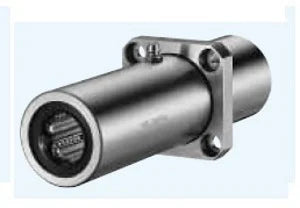

| TRKC25UU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC25UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

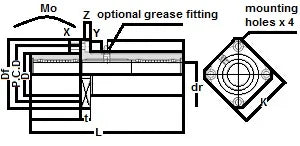

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 25 | 0-18 | 52 | 0-30 | 165 | 74 | 10 | 60 | 6,6 x 11 x 6,1 | |
