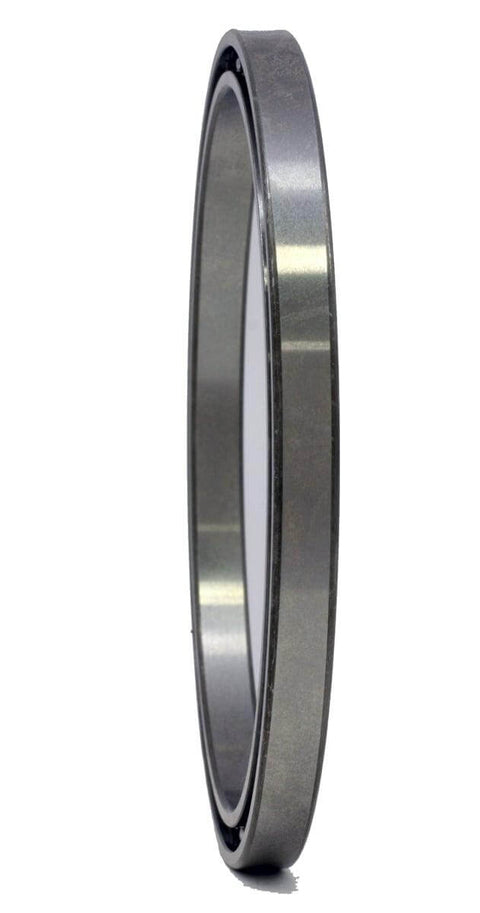

VD040XP0 Thin Section Bearing X Four-Point Contact ID 4" OD 5" Width 1/2"inch
UPC: 00193019334041
Type : VXB Slim Bearings
KD040XP0 Inner (ID) : 4
KD040XP0 Outer (OD) : 5
KD040XP0 Width : 1/2
VD040XP0 Thin Type Bearing - Inch Series
✔️ 4" x 5" x 0.5" - Four-Point Contact, Open Design
The VD040XP0 is a slim-section inch-series bearing featuring a four-point contact design for handling combined radial and axial loads in both directions. With a 4" inner diameter and a 5" outer diameter, this open-style bearing is ideal for space-restricted applications where rigidity and compactness are critical - such as in robotic arms, rotary actuators, and high-precision positioning systems.
✅ Size: 4" ID x 5" OD x 0.5" width
✅ Type: Four-point contact slim bearing
✅ Series: Inch slim type (X-Type)
✅ Cross-section: 1/2"
✅ Material: Chrome steel
✅ Dynamic load rating: 6.588 kN
✅ Static load rating: 15.826 kN
✅ Enclosure: Open (dry, unsealed)
✅ Quantity: 1 bearing
✅ Brand: VXB
💡 Why choose four-point contact slim bearings?
These bearings provide space-saving versatility by supporting both axial and radial loads in a single row, ideal for rotating assemblies where stiffness and minimal weight are required.
Engineered for balanced load handling in compact, precision systems.
🔍 Comparison Table: VD040XP0 vs. VD040CP0
| Caractéristique | VD040XP0 (X-Type) | VD040CP0 (C-Type) |
|---|---|---|
| Diamètre intérieur | 4" | 4" |
| Diamètre extérieur | 5" | 5" |
| Largeur | 0.5" | 0.5" |
| Contact Type | Four-point (X-type) | Deep groove (C-type) |
| Load Handling | Radial + axial (both directions) | Principalement radial |
| Capacité de charge dynamique | 6.588 kN | Higher for pure radial |
| Axial Load Support | Excellent | Modéré |
| Enceinte | Ouvre | Ouvre |
Choose VD040XP0 for multi-directional load support and compact flexibility. Choose VD040CP0 if your application requires a slimmer radial bearing with higher speed and radial load efficiency.
