NBK
BRUHS-5-N has a small coefficient of friction and can move workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.
NBK Japan BRUHS-5-N Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$97.63 CAD
$131.81 CADvous économisez $34.18 CAD
SKU: BRUHS-5-N-NBK
UPC: 0
UPC: 0
Item: BRUHS-5-N
Hexagon Head Screw Type Ball Transfer unit
Main Body: Stainless Steel
Main Ball: Polyacetal/White
Hexagon Head Screw Type Ball Transfer unit
Main Body: Stainless Steel
Main Ball: Polyacetal/White
| BRUHS-5-N Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications Single Screw. |

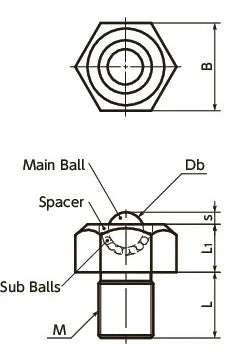

| Part Number | M | L | L1 | S | Db | B | Withstand Load (N) |
| BRUHS-5-N | 5 | 6 | 5 | 1.1 | 4 | 8 | 6 |
