BRUHS-5-S has a small coefficient of friction and can move workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.
NBK Japan BRUHS-5-S Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$97.63 CAD
$131.81 CADvous économisez $34.18 CAD
SKU: BRUHS-5-S-NBK
UPC: 0
UPC: 0
Item: BRUHS-5-S
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel

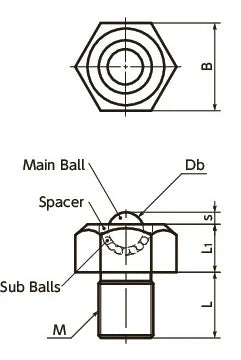

| BRUHS-5-S Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications, Single Screw. |
| Part Number | M | L | L1 | S | Db | B | Withstand Load (N) |
| BRUHS-5-S | 5 | 6 | 5 | 1.1 | 4 | 8 | 12 |
