BRUHS-6-S has a small coefficient of friction and can move workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.
NBK Japan BRUHS-6-S Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications
$106.67 CAD
$144.00 CADvous économisez $37.33 CAD
SKU: BRUHS-6-S-NBK
UPC: 0
UPC: 0
Item: BRUHS-6-N
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
| BRUHS-6-S Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications, Single Screw. |

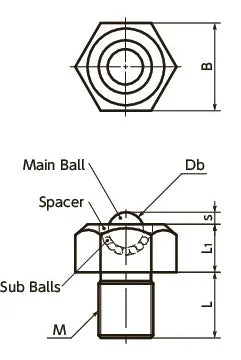

| Part Number | M | L | L1 | S | Db | B | Withstand Load (N) |
| BRUHS-6-S | 6 | 8 | 6 | 1.2 | 4.76 | 10 | 14 |
