Système de rail guide 20mm 13 pieds =156 pouces - unité de glissière carrée
$633.87 CAD
$855.71 CADvous économisez $221.84 CAD
SKU: 20MM-13FEET-SQUARE-SHAFT
UPC: 00193019140857
UPC: 00193019140857
Diameter Shaft: 20mm
Rail length: 13' feet = 156" Inch
Block Dynamic load rating: 17.75 KN
Block Static load rating: 37.84 KN
High repeatability and smooth running performance
Rail length: 13' feet = 156" Inch
Block Dynamic load rating: 17.75 KN
Block Static load rating: 37.84 KN
High repeatability and smooth running performance
| On fait pas de shipping international |
| Système de guide linéaire 20mm 13' pieds = 156" pouces de long |

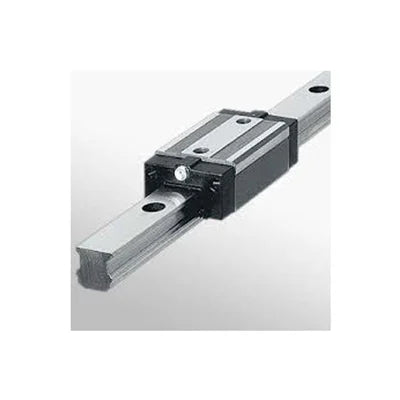

Système de guide linéaire complet avec un bloc carré installé, arbre de 20mm pis rail de 156" pouces.
|

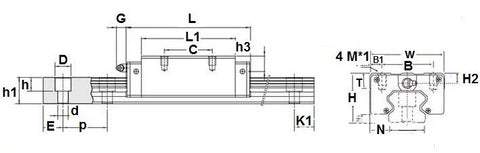

| Rail Nom |
Dimensions du rail (mm) | Bloc Nom |
Dimensions du bloc (mm) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | d | D | E | P | W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 | ||
| HYR20-4000 | 60 | 4.6 | 12 | 6 | 9.5 | 20 | 60 | HYH20CA | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 |
