VXB
Rail carré 15mm 60 long - un bloc
$593.89 CAD
$801.75 CADvous Ă©conomisez $207.86 CAD
SKU: kit7591
UPC: 00193019281604
UPC: 00193019281604
Diameter Shaft: 15mm
Rail length: 60" Inch
Block Dynamic load rating: 11.38 KN
Block Static load rating: 25.31 KN
High repeatability and smooth running performance
Rail length: 60" Inch
Block Dynamic load rating: 11.38 KN
Block Static load rating: 25.31 KN
High repeatability and smooth running performance
| On fait pas de shipping international |
| Système de guide linéaire 15mm Rail de 60" pouces de long |

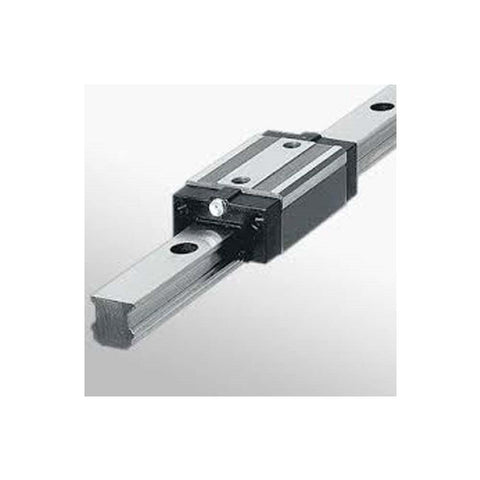

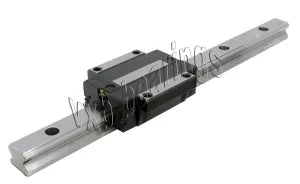

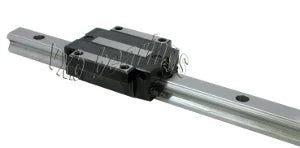

Système de guide linéaire complet avec un bloc carré à bride installé, arbre de 15mm pis rail de 60" pouces de long.
|

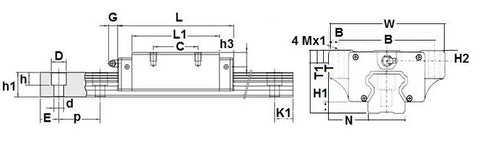

| Rail Nom |
Dimensions du rail (mm) | Bloc Nom |
Dimensions du bloc (mm) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | d | D | E | P | W | B | B1 | C | L1 | L | K1 | G | M | T | T1 | H2 | H3 | ||
| HYR15-1524 | 28 | 4.3 | 9.5 | 4.5 | 7.5 | 20 | 60 | HYW15CA | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 53 | M5 | 6 | 89 | 3.95 | 37 |
