Palier 7/8" HCFL205-14 à 2 boulons avec boîtier à bride – bloc palier monté avec bague excentrique
$89.45 CAD
$120.75 CADvous économisez $31.30 CAD
SKU: HCFL205-14
UPC: 00193019200124
UPC: 00193019200124
Item: HCFL205-14 Bearing
Type: Flanged Mounted Bearing with Eccentric Collar Lock
Bolt Size: M10
Basic Load Dynamic (Cr): 14,000 N
Basic Load Static (Cor): 7,850 N
Type: Flanged Mounted Bearing with Eccentric Collar Lock
Bolt Size: M10
Basic Load Dynamic (Cr): 14,000 N
Basic Load Static (Cor): 7,850 N
| Palier à bride 7/8 po HCFL205-14 avec collier excentrique Un bearing |
|
Bearing monté 7/8" HCFL205-14, a un diamètre intérieur de 7/8" pouce.
|

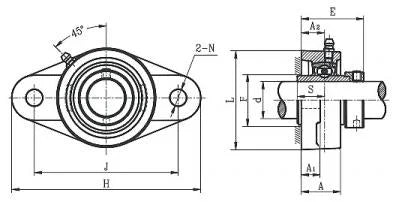

| Dimensions (pouces) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 7/8 " | 4 27/32" | 3 57/64 " | 15/32" | 1 3/16 " | 19/32" | 3/4" | 1 13/16 " | 2 3/4 " | 0.6850 | ||
