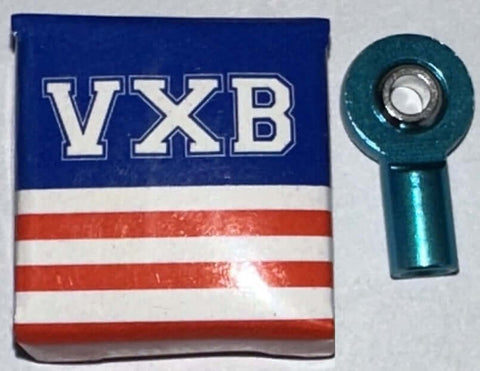

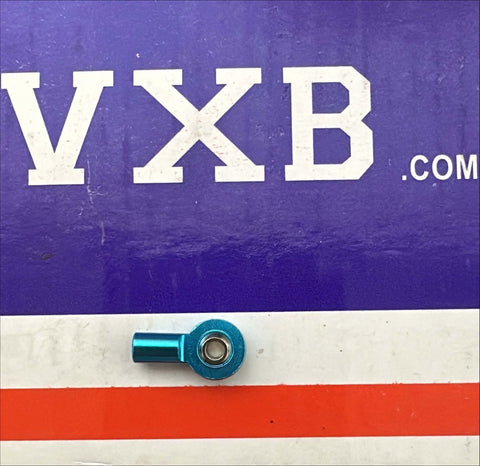

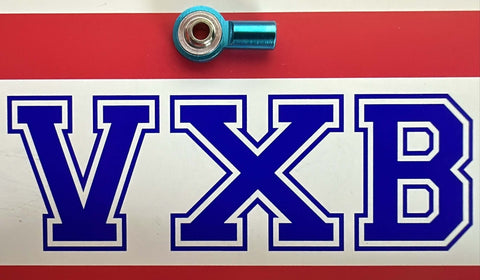

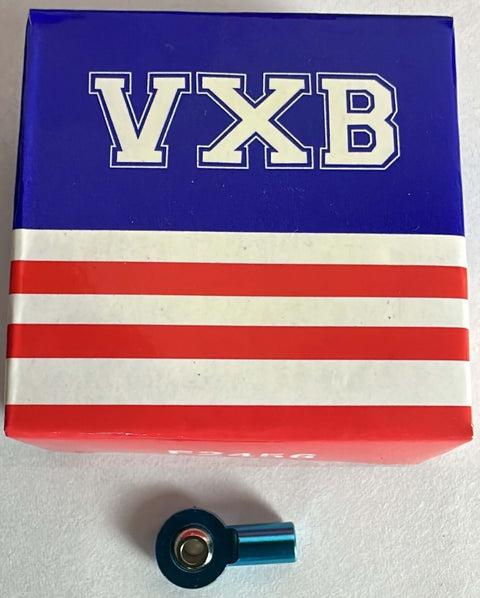

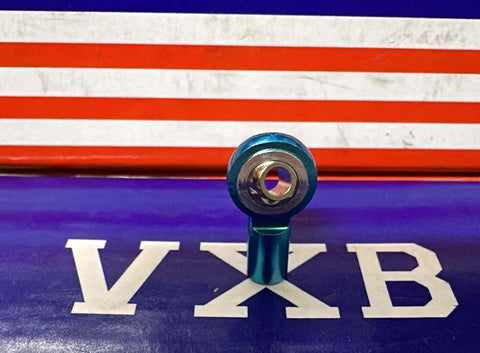

Female Rod End 3mm Blue PHS3 Right Hand Mini Heim Joint
UPC: 00193019347041
Quantity: One Bearing
Type: Rod Ends Heim Joints Bearing
Item: Blue PHS3 Bearing
PHS3 Female Rod End 3mm Right Hand Threaded Heim Joint
✔️ Mini Metric Rod End Bearing with 3mm Bore
This compact female rod end bearing is designed for motion systems that need smooth articulation and pivoting in tight setups. Often found in RC builds, light automation, and mechanical linkages, it's built for precise movement with minimal play.
✅ 3mm inner bore size fits light-duty shafts and pins
✅ Female threading with right-hand orientation for quick assembly
✅ Durable steel body, corrosion-resistant finish
✅ Used in linkages, actuators, RC arms, and compact pivots
✅ Great for systems needing compact joints with smooth rotation

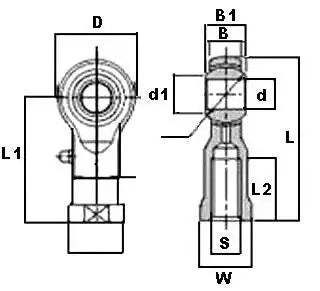

Dimensions (all in mm):
| Code | Dimension | Value |
|---|---|---|
| d | Bore Diameter | 3 |
| d1 | Ball Outer Diameter | 8 |
| B | Ball Width | 4.2 |
| B1 | Head Width | 6.5 |
| D | Head Diameter | 16 |
| L | Total Length | 37 |
| L1 | Head Height | 22 |
| L2 | Thread Length | 15 |
| S | Wrench Size | 5.5 |
| W | Body Width | 8 |
💡 What are female rod end bearings used for in mechanical systems?
Female rod ends are used where controlled motion and pivoting are needed between two parts. These joints are super handy in all sorts of setups.
-
Connect rods, shafts, or arms while allowing smooth articulation
-
Common in robotic joints, RC vehicles, and control linkages
-
Threaded body makes them easy to install or adjust
-
Used where compact movement with durability matters
This PHS3 rod end is a solid choice when you need motion control in a tight spot, order now and keep your system dialed in.
