NBK
BRUHS-10-S has a small coefficient of friction and can move the workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner..
NBK Japan BRUHS-10-S Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$103.06 CAD
$139.12 CADvous économisez $36.06 CAD
SKU: BRUHS-10-S-NBK
UPC: 0
UPC: 0
Item: BRUHS-10-N
Hex Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
Hex Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel

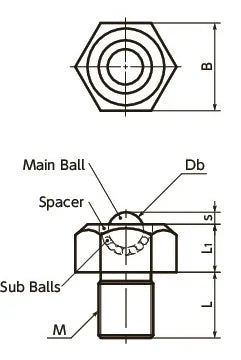

| BRUHS-10-S Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications, Single Screw. |
| Part Number | M | L | L1 | s | Db | B | Withstand Load (N) |
| BRUHS-10-S | 10 | 12 | 10 | 2.5 | 8.73 | 17 | 55 |
