BRUHS-16-N has a small coefficient of friction and can move workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.
NBK Japan BRUHS-16-N Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$115.72 CAD
$156.21 CADvous économisez $40.49 CAD
SKU: BRUHS-16-N-NBK
UPC: 0
UPC: 0
Item: BRUHS-16-N
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Polyacetal/White
Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Polyacetal/White
| BRUHS-16-N Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications Single Screw. |
BRUHS-16-N has a small coefficient of friction and can move workpiece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.

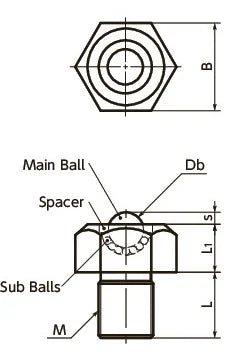

| Part Number | M | L | L1 | s | Db | B | Withstand Load (N) |
| BRUHS-16-N | 16 | 20 | 15 | 5.3 | 15.87 | 24 | 69 |
