2 Pair 1.25 Heim Joints Rod End Kit with Right & Left Hand Threads, Heat Treated Chromoly Panhard Joints, Round Tube Adapters, Jam Nuts and High Misalignment Spacers, 76000 lb Load for Steering and Suspension

1.25 Inch Heim Joint Rod End Kit with Right and Left Hand Threads
✔️ 2 Pair Heavy-Duty Chromoly Heim Joints with Tube Adapters and HMS

This 1.25 inch heim joint rod end kit is built for serious steering and suspension setups that demand extreme strength and clean adjustability. Supplied as a complete 2 pair kit, it’s commonly used on panhard bars, traction bars, tie rods, and custom link systems in heavy trucks and performance builds.

✅ Pack size: 2 pair total, includes 4 heim joints with full hardware

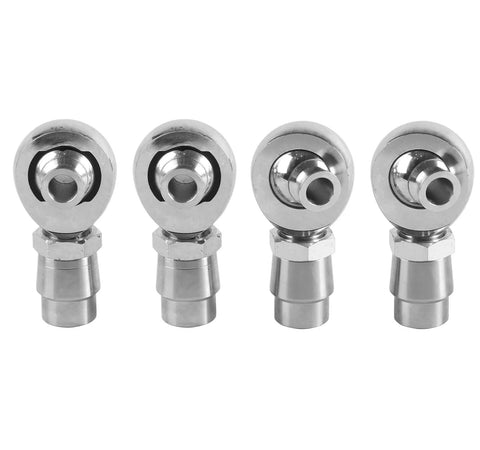

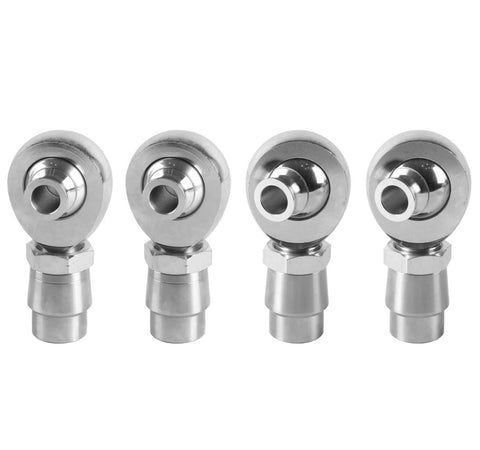

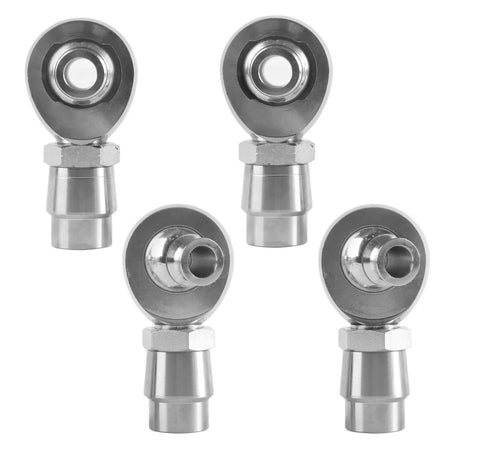

✅ Two right hand and two left hand threaded rod ends for easy alignment tuning
✅ Heat treated chromoly construction with hard chrome plating
✅ Massive static load rating up to 76,000 lbs
✅ 1 inch bore paired with 1.25 inch shank for maximum joint strength

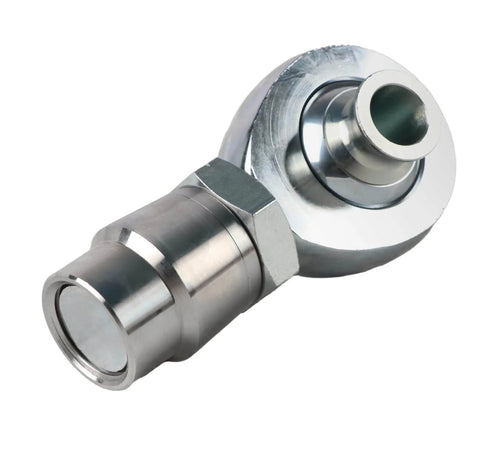

✅ Zinc-coated jam nuts and round tube adapters included

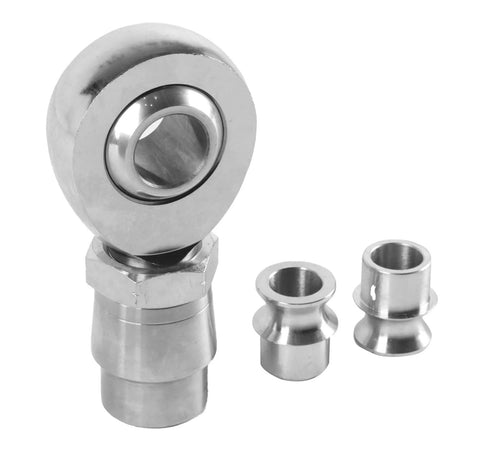

✅ High misalignment spacers allow smooth articulation under extreme angles
✅ Designed for heavy steering, suspension, and link joint applications

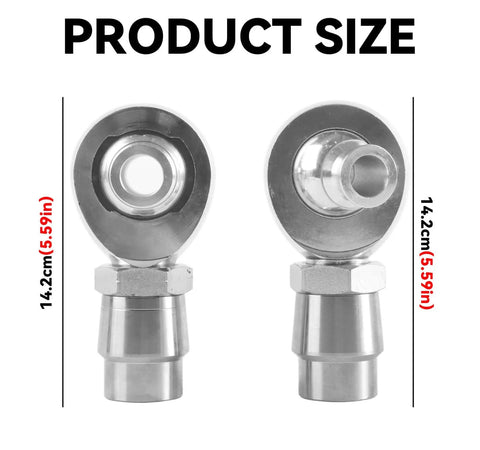

Dimensions and Specifications

Rod End
Thread Size 1.25"-12
Shank Diameter 1.250 in
Ball Bore 1.000 in
Mounting Width 2.625 in
Static Load 76,000 lbs

Tube Bung
Tube OD 1.750 in
Wall Thickness 0.120 in
Tube ID 1.500 in

High Misalignment Spacer
Bore Reduction 1.000 in to smaller joint travel support

💡 Why are large diameter heim joints used in heavy-duty steering and suspension systems?
Large heim joints are chosen when extreme loads, shock forces, and alignment accuracy must be handled without failure.

• Bigger shank and bore sizes dramatically increase load capacity

• Heat treated chromoly resists bending and fatigue under harsh conditions

• High misalignment spacers allow controlled movement without joint bind

• Right and left hand threads make precise suspension tuning faster

This kit is a handy choice when you need serious strength, clean articulation, and confidence in steering or suspension systems that get pushed to the limit.
