2 Pair 1.25 Heim Joints Rod End Kit with Right and Left Hand Threads, Heat Treated Chromoly Joints, 1 Inch Bore, 12 TPI Shaft, Includes Round Tube Adapters, Jam Nuts and High Misalignment Spacers, 76000 lb Load

1.25 Inch Heim Joint Rod End Kit with Right and Left Hand Threads

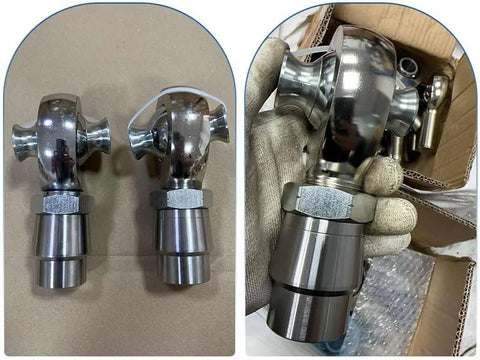

✔️ 2 Pair Chromoly 1-1/4 Inch Heim Joints with Tube Adapters and HMS

This heavy-duty 1.25 inch heim joint rod end kit is built for steering and suspension systems that demand extreme strength and clean adjustability. Supplied as a complete 2 pair setup with all matching hardware, it’s commonly used on panhard bars, tow bars, suspension links, and custom fabrication projects where reliability matters.

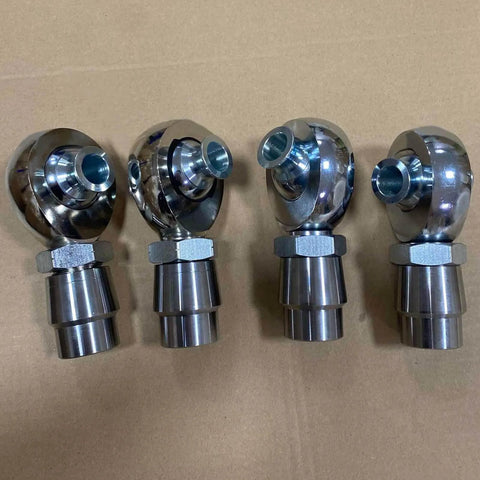

✅ Pack size: 2 pair total, includes 4 heim joints with full hardware set
✅ Two right hand and two left hand threaded rod ends for easy alignment tuning
✅ 1.25 inch shank with 12 TPI and 1 inch bore for maximum joint strength

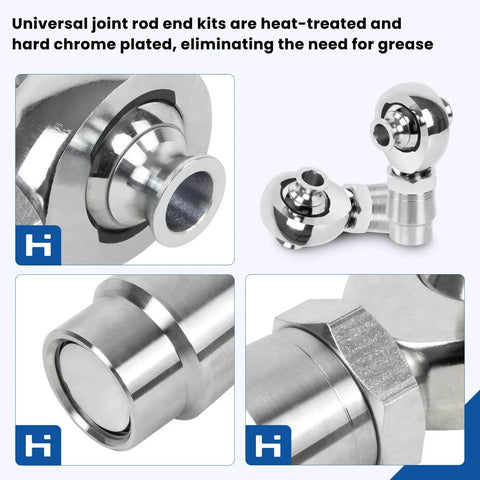

✅ Heat treated chromoly construction with hard chrome plating
✅ Massive static load capacity rated up to 76,000 lbs

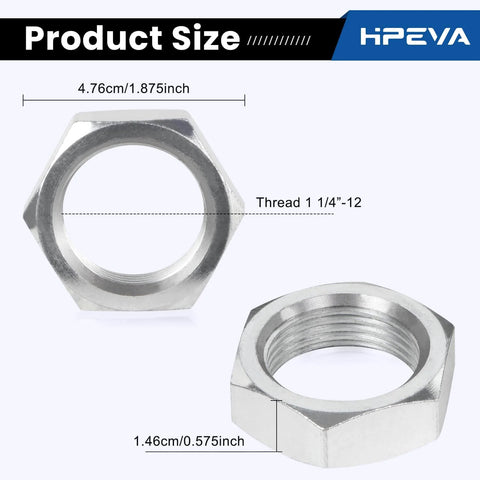

✅ Includes round tube adapters, jam nuts, and high misalignment spacers
✅ Maintenance-free design with no grease required

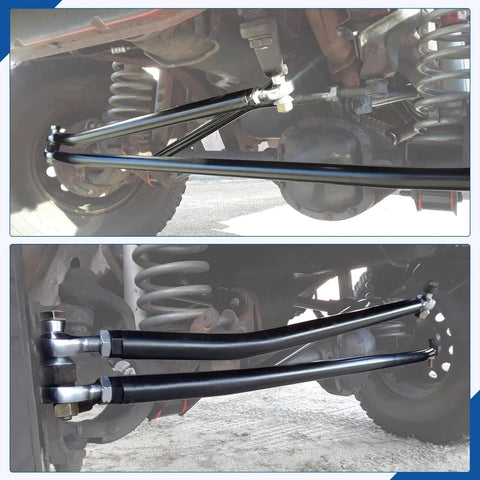

✅ Handy for steering systems, suspension links, tow bars, and heavy-duty joints

Dimensions and Specifications

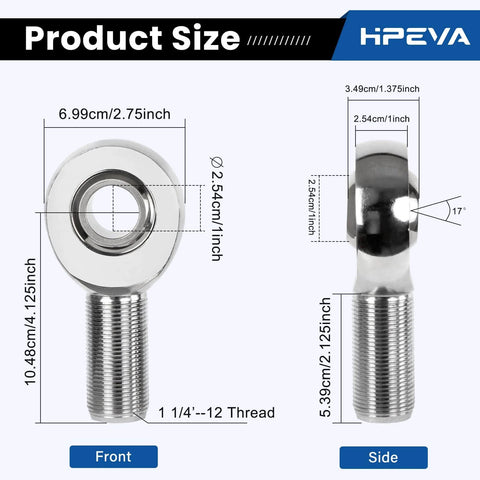

Rod End
Thread Size 1.25"-12
Shank Diameter 1.250 in
Ball Bore 1.000 in
Mounting Width 2.625 in
Static Load 76,000 lbs

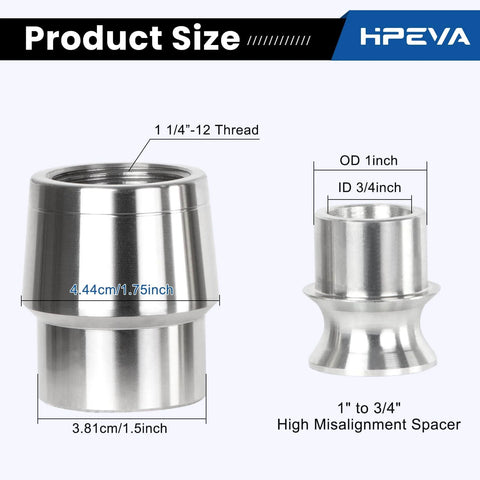

Tube Bung
Tube OD 1.750 in
Wall Thickness 0.120 in
Tube ID 1.500 in

High Misalignment Spacer
Application Allows increased joint angle under load

💡 Why are 1.25 inch chromoly heim joints used in heavy steering and suspension systems?
Large chromoly heim joints are chosen when extreme loads and shock forces must be handled without loss of control.

• Oversized shank and bore dramatically increase load handling

• Heat treated chromoly resists fatigue from vibration and impact

• High misalignment spacers allow smooth articulation without bind

• Right and left hand threads make precise suspension tuning faster

This kit is a handy choice when you need serious strength, smooth articulation, and confidence in heavy-duty steering or suspension setups that work hard every mile.
