100mm Effective Travel Dual Optical Axis Manual Sliding Table with SFU1605 Ball Screw, Linear Rail Guide and Handwheel, C7 Precision, Heavy Load Metal Build for CNC Equipment Transformation, Automatio

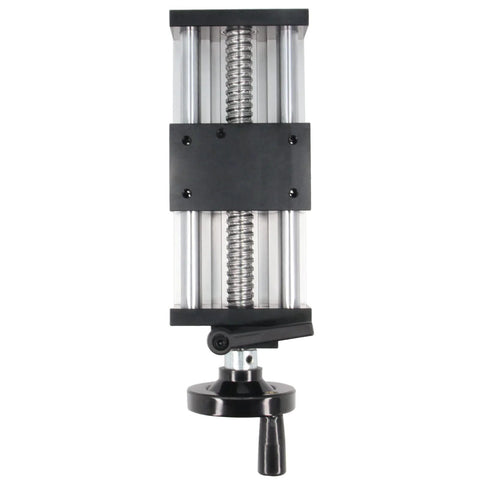

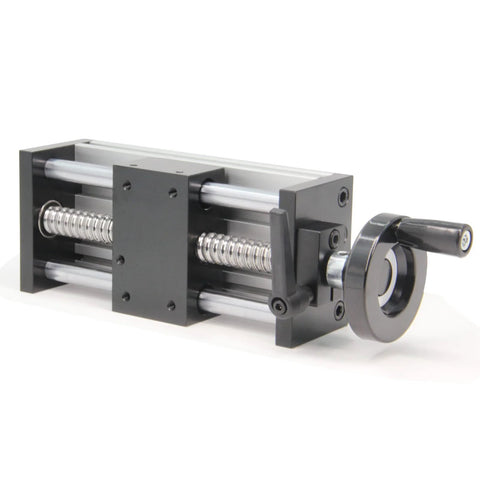

100mm Manual Linear Sliding Table with Dual Optical Axis and Handwheel
✔️ SFU1605 Ball Screw Linear Stage for CNC Conversion and Fine Adjustment

This manual linear sliding table is designed for non standard automation, CNC equipment upgrades, inspection setups, and precision positioning where compact size and smooth hand control are key. It uses a dual optical axis guide system with an SFU1605 ball screw and handwheel to deliver steady motion, solid load handling, and repeatable accuracy in tight working spaces. Pack size includes one complete manual sliding table with handwheel and tools.

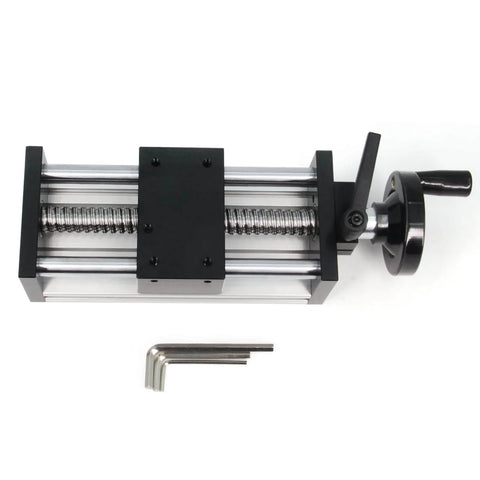

✅ Pack size: 1 manual sliding table with handwheel, 3 Allen wrenches

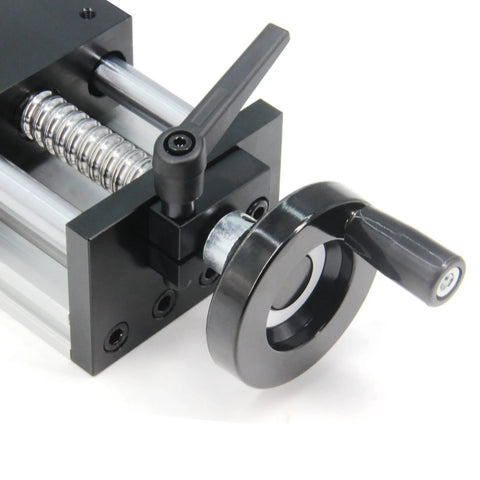

✅ Drive type: handwheel manual crank
✅ Linear guide system: dual optical axis
✅ Ball screw type: SFU1605
✅ Ball screw diameter: 16mm (0.630 in)
✅ Lead pitch: 5mm (0.197 in) per revolution
✅ Precision grade: C7
✅ Effective travel: 100mm (3.94 in)
✅ Repeat positioning accuracy: ±0.03mm
✅ Max horizontal load: 30kg
✅ Max vertical load: 15kg

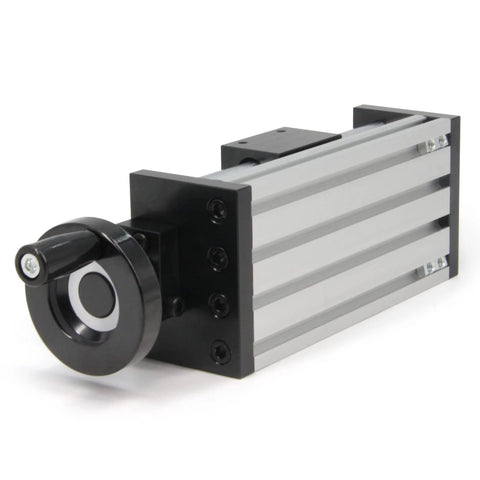

✅ Aluminum alloy body with sandblasted rust resistant surface
✅ Smooth operation with low noise

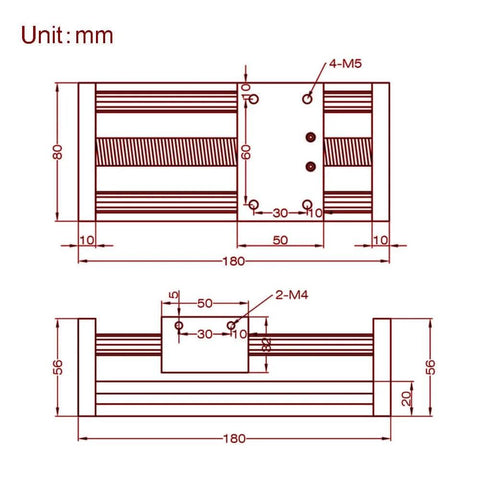

✅ Four M5 threaded holes for workpiece mounting

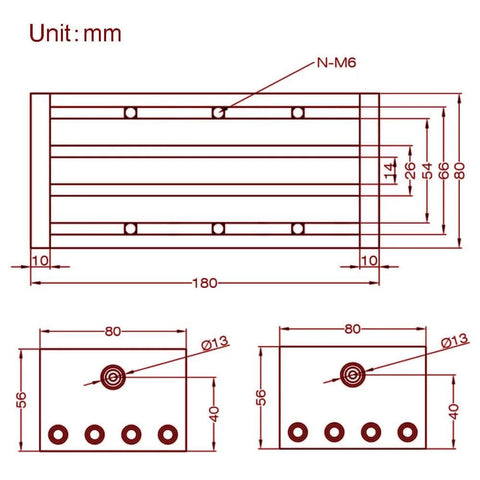

Dimensions and Motion Specs
Ball Screw Diameter 16mm (0.630 in)
Lead Pitch 5mm (0.197 in)
Effective Travel 100mm (3.94 in)
Repeat Accuracy ±0.03mm
Weight 1540g

This compact manual linear stage delivers controlled positioning, smooth hand driven travel, and dependable accuracy for lab work, CNC retrofits, and mechanical fine adjustment tasks.

💡 Why are short travel manual ball screw stages used for precision positioning and equipment tuning?
Manual ball screw stages are built to give accurate movement without motors while staying smooth and predictable.

• Ball screw drive reduces friction for finer hand adjustment

• Fixed lead pitch provides consistent displacement per handwheel turn

• Dual optical axis guides improve stiffness and alignment under load

• Manual control works well for inspection, calibration, and fine tuning

A handy choice when you need smooth hand controlled motion, reliable accuracy, and solid load support in compact precision setups.
