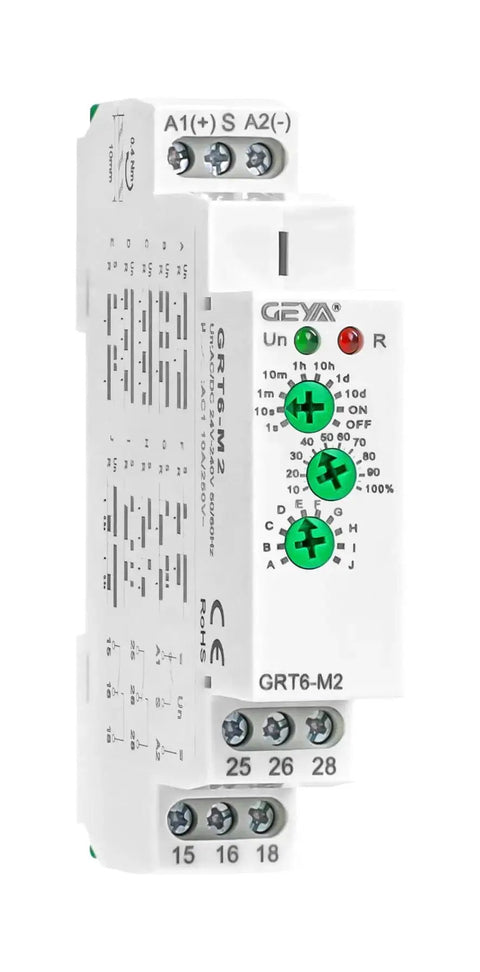

10A Multifunction Delay Time Relay With 10 Time Functions, AC DC 24V 240V Universal Control Relay, 2 Output, DIN Rail Mount, Plug And Play Ready, Ideal For Lights, Heating, Motors, Pumps And Fans, Industrial Automation

Compact 10-Function Delay Time Relay for AC/DC 24-240V
✔️ 10-function timing relay, DIN rail mount, 0.1s-10 days, 18mm wide

This multifunction delay timer is a compact DIN-rail module for automating lights, heaters, motors, pumps, and fans. It supports AC/DC input from 24V to 240V and fits neatly into standard 35mm DIN rails for easy panel integration.

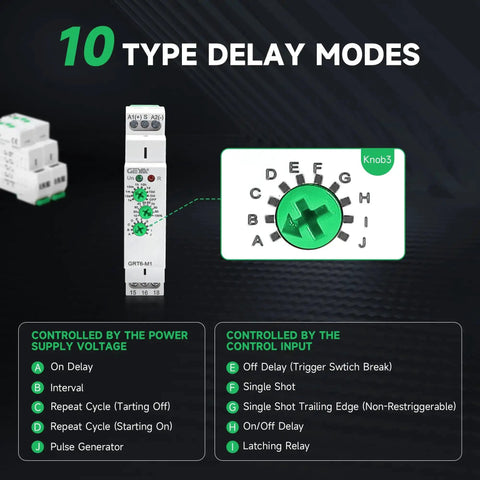

✅ 10 timing functions with 10 ranges (0.1s-10 days)
✅ 5 time functions by supply voltage; 4 by input; 1 latching
✅ Wide input range AC/DC 24V-240V

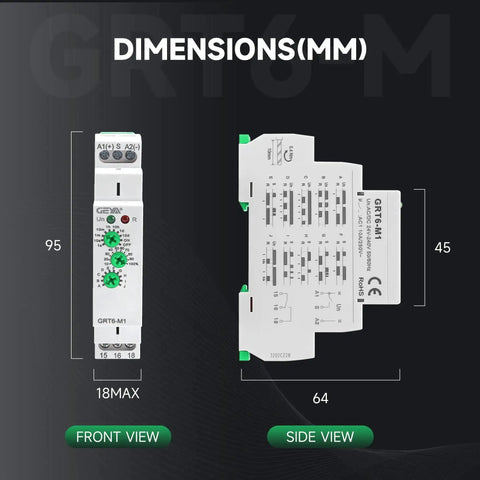

✅ Compact 18mm wide DIN rail mount, 64x90mm body
✅ LED indicator shows relay status clearly

💡 What is a timing relay used for in control panels and how does a DIN-rail model with 24-240V input work? This handy guide explains common uses and practical benefits. - timing relays manage lights, fans, motors and pumps in automation setups - supports adjustments from 0.1 seconds to 10 days across 10 functions - DIN-rail mounting keeps wiring neat and panels easy to service
