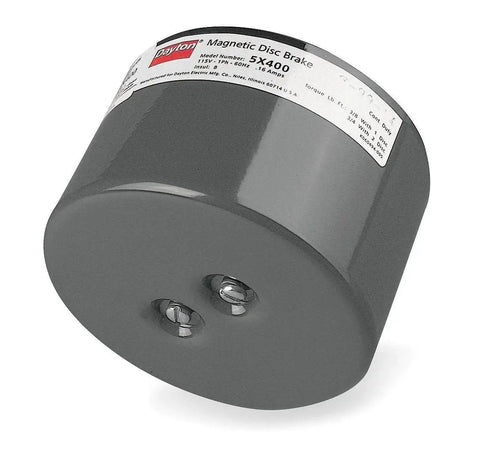

115V Magnetic Disc Brake For Gear Motors 0.375 To 0.75 Ft Lb Torque Shaft Mount 115VAC Coil Provides Fast Safe Stop And Reliable Holding Action For Conveyors Door Openers And Industrial Equipment

115V Magnetic Disc Brake for Gear Motors 0.375-0.75 ft-lb
✔️ Single unit; 3/8-3/4 ft-lb torque; 115VAC coil; shaft mount

This magnetic disc brake attaches to gear motors to provide stopping and holding action for loads. It’s commonly used on conveyors, door openers, and similar equipment where controlled braking is needed when power is removed.

✅ Type: Magnetic Disc Brake
✅ Coil Voltage: 115VAC
✅ Static Torque: 3/8- to 3/4 ft-lb
✅ Duty: Continuous
✅ Mounting: Shaft extension with brake hub and mounting bolts
✅ Max HP @ 1725 RPM: 1/6 HP
✅ Max HP @ 3450 RPM: 1/2 HP
✅ Ambient: 40 C
✅ Lead Length: 15 in
✅ Length: 3-1/32 in; Diameter: 4-1/16 in
✅ Removable disc to reduce torque to 3/8 ft-lb

💡 What is a magnetic disc brake used for in gear motor systems and conveyors?

It provides handy, reliable stopping and holding action on 115V 60Hz gear motors when power is removed, helping prevent drift and accidental motion.

- handy for preventing load drift in conveyors and door systems - provides controlled stopping on 115V 60Hz gear motors - reduces wear during power-down and startup sequences
