12 Inch Fringer Press Brake Attachment For 20 Ton Hydraulic Shop Presses With 18 Inch Between Uprights Includes Finger Sizes 1 Inch, 2 Inch, 2 Inch, 3 Inch And 4 Inch Plus Upper Die Mounting Cup 1.875 Inch

12-Inch Press Brake Attachment for 20T Presses (Single) ✔️ 12 in bend area, 0 to 90 degrees, fits 20-ton presses

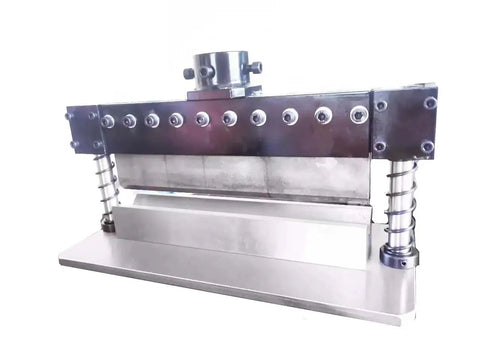

This 12-inch Fringer Press Brake Attachment is designed to bolt onto standard 20 ton hydraulic shop presses, giving you precise sheet metal bending capability. It’s a common choice for hobbyists and small shops that need clean, accurate bends on mild steel or aluminum without a dedicated press brake machine.

✅ Finger sizes: 1 inch, 2 inch, 2 inch, 3 inch, 4 inch
✅ Upper die mounting cup inner diameter 1-7/8 inch (48 mm)
✅ Overall dimensions: 17 inch wide, 7.5 inch deep, 10 inch high
✅ Bottom die overall width: 2.25 inch; bottom die overall height: 1.75 inch
✅ Max width capacity: 12 inch (305 mm)
✅ Brake range: 0 to 90 degrees
✅ Max thickness (mild steel/aluminum): 3/16 inch x 12 inch width (4.8 mm x 304.8 mm); 1/4 inch x 6 inch width (6.4 mm x 152.4 mm); 5/16 inch x 2 inch width (7.9 mm x 50.8 mm)
✅ Attaches to most standard hydraulic shop presses; relevant to 18 inch between uprights (457 mm)

Dimension	Value	Metric
Overall width	17 in	430 mm
Depth	7.5 in	190 mm
Height	10 in	254 mm
Bottom die width	2.25 in	57 mm
Bottom die height	1.75 in	44 mm
Max width capacity	12 in	305 mm

💡 What is a press brake attachment used for in metalworking? This handy tool lets you form precise bends on sheet metal using a standard hydraulic press. - Helpful for making straight, accurate bends in mild steel and aluminum - Aids in producing consistent radii and bend angles on small- to medium-sized parts - Simplifies setup and changeover between different bend radii and sheet widths
