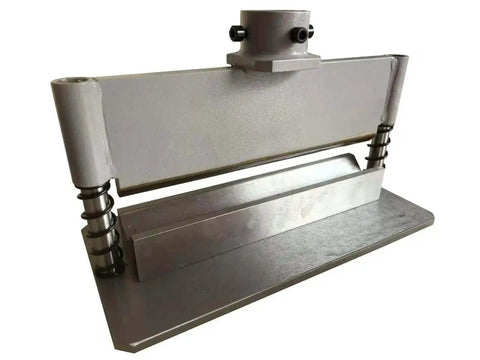

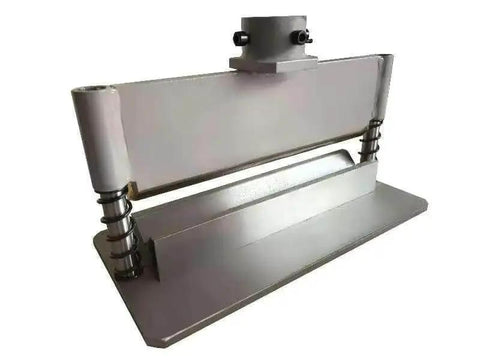

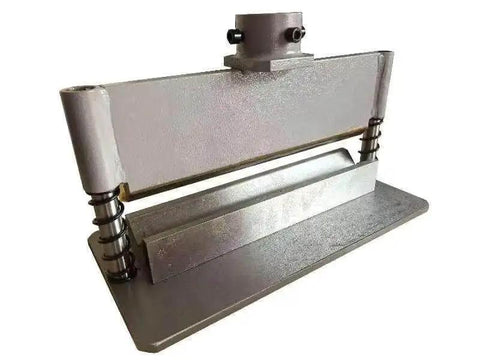

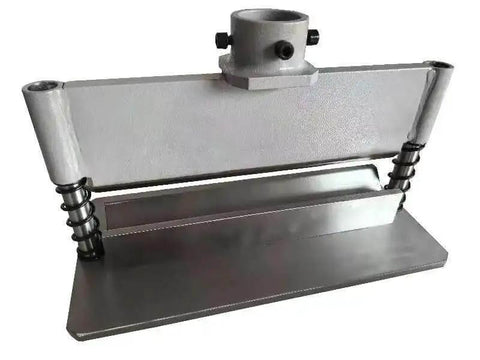

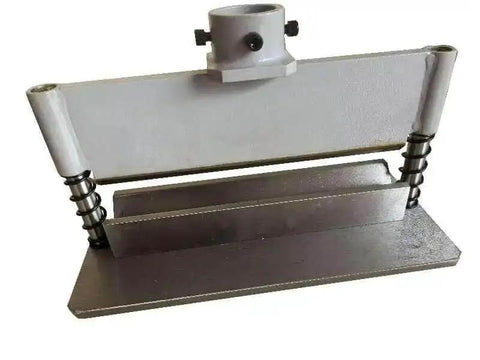

12 Inch Press Brake Attachment For Standard 12 To 20 Ton Hydraulic Shop Presses, Adjustable 0 To 90 Degrees, Centering Attachment, Hardened Upper Die, 12 Inch Width Capacity, Compatible With Most Presses, Mild Steel Up To Three Sixteenth Inch

Single 12-Inch Press Brake Attachment for 12-20 Ton Presses
✔️ 0-90° bend range, 12 in width, centering, hardened upper die

This 12-inch press brake attachment fits most 12-20 ton hydraulic shop presses and lets you bend mild steel or aluminum with precision from 0 to 90 degrees. It includes a locking centering attachment and a hardened upper die for repeatable bends, making it ideal for fabricating brackets, floor channels, and panels in automotive, trailer, and light fabrication work.

✅ Max thickness: 3/16 inch (4.76 mm); width 12 inch (304.8 mm)
✅ Optional thickness: 1/4 inch (6.35 mm) with 6 inch width (152.4 mm)
✅ Thickness/width option: 5/16 inch (7.94 mm) x 2 inch width (50.8 mm)
✅ Max width capacity: 12 inch (304.8 mm)
✅ Brake range: 0-90 degrees
✅ Upper die: Hardened steel upper die; mounting cup diameter 1-7/8 inch (47.6 mm)
✅ Overall dimensions: 14.5 inch W x 7.5 inch D x 10 inch H (368.3 x 190.5 x 254 mm)

💡 What is a press brake attachment used for in metalworking? This handy solution lets you bend sheet metal using a common shop press.
- Use to form brackets, channels, and panels
- Handy for mild steel up to 3/16 inch thick and 12 inch wide
- Compatible with most 12-20 ton presses for 0-90 degree bends
