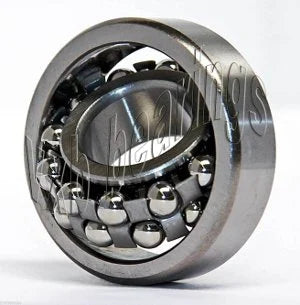

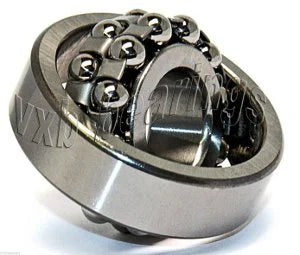

1220 Self Aligning Ball Bearing 100x180x34mm

1220 Self Aligning Ball Bearing has a spherical outer ring raceway, the balls and cage continue to rotate, this type of bearings is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur, made from durable 52100 alloy steel, commonly known as chrome steel.

• 1220 Ball Bearing
• Self Aligning Bearing
• Dimensions: 100mm x 180mm x 34mm/Metric
• Inner Diameter: 100mm
• Outer Diameter: 180mm
• Width: 34mm
• Size: 100 x 180 x 34 mm
• Quantity: 1 Bearing
• Dynamic load rating C: 69,000 N
• Static load rating Co: 29,700 N
• Limiting Speed:
  • Grease Lubrication: 3,100 RPM
  • Oil Lubrication: 3,800 RPM
