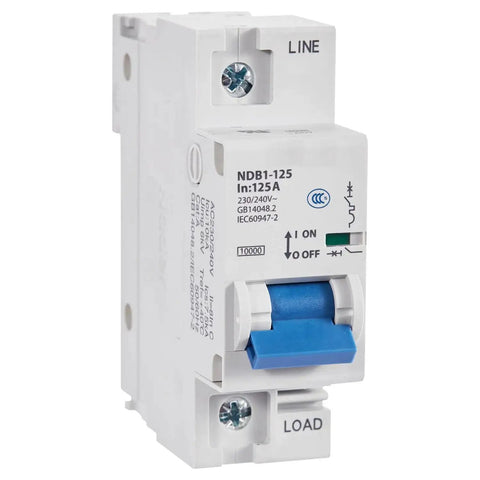

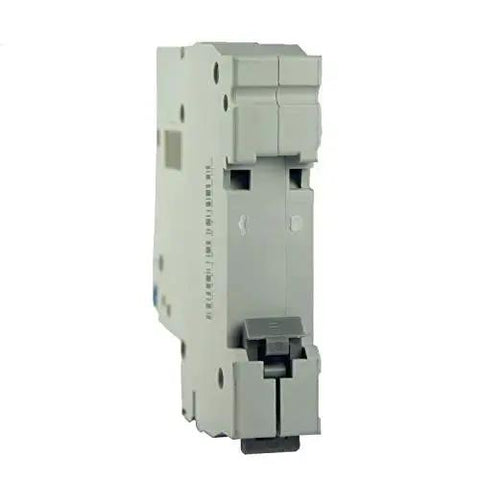

125 Amp DIN Rail Mount Circuit Breaker For 240V AC And 60V DC One Pole Trip Curve C UL 1077 Listed Visual Trip Indicator Easy Wire Screw Clamp Connections Tough As Nails Protection For Panels And Machinery Compact DIN Rail Unit
UPC:
✔️ 1P, 125A, 35 mm DIN rail, 240 VAC / 60 VDC, UL1077, single unit
This compact single-unit DIN rail circuit breaker provides UL 1077 supplemental protection for panels and machinery. It mounts on standard 35 mm DIN rails and supports wire sizes from 16 AWG to 1/0 AWG. It is designed for high-current applications, with a 10 kA interrupt capacity and reliable performance from the NDB1-125C125-1 family.
✅ 125 A rating for high-current protection (240 VAC / 60 VDC)
✅ 1P, C-curve trip; instant trip from 5 In to 10 In
✅ Visual trip indicator for quick fault location
✅ Wire clamp terminals accept 16 AWG to 1/0 AWG
✅ 35 mm DIN rail mount, UL 1077 listed, 10 kA interrupt capacity
✅ Package dimensions 3.0 H x 4.0 L x 2.0 W inches
💡 What is a high-current DIN rail circuit breaker used for in electrical panels and machinery protection? Handy device to prevent overloads and shutdowns during fault conditions. - Protects wiring and equipment by interrupting overload currents - Helps meet safety standards like UL 1077 for supplemental protection - Easy to retrofit on standard 35 mm DIN rails in control panels - Visual trip indicator aids quick fault finding and maintenance
