12V-110V DC Miniature Circuit Breaker, 15 Amp 2-Pole Battery Protector For Solar PV Systems And RVs, Thermal Magnetic Trip, DIN Rail Mount DC Disconnect Switch, Beefy Short-Circuit Protection With Quick Trip

DC Mini Breaker 15A 2-Pole for Solar & RV (Single Unit)
✔️ 12-110V DC, 15A, 2-pole, thermal-magnetic trip, 35 mm

This compact DC circuit breaker protects 12-110V power systems from overload and short circuits, making it ideal for solar setups, RV battery banks, and other battery-powered DC circuits. With a 35 mm DIN rail mount, quick-trip action, and snap-in safety, it provides reliable isolation for maintenance and protection.

✅ 12-110V DC operating range
✅ Current rating 15A, 2-pole

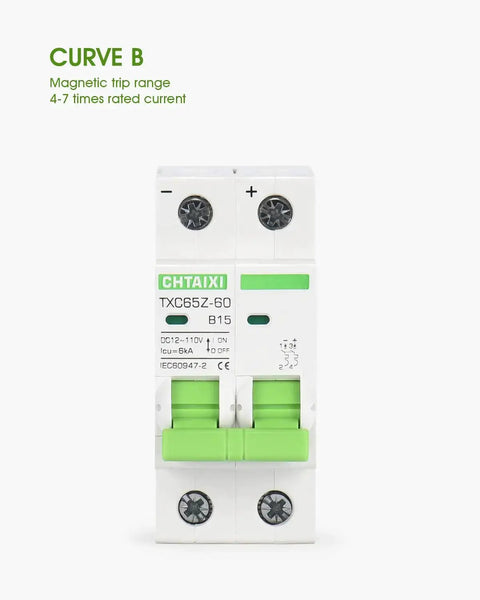

✅ Trip type thermal magnetic with electromagnetic quick trip

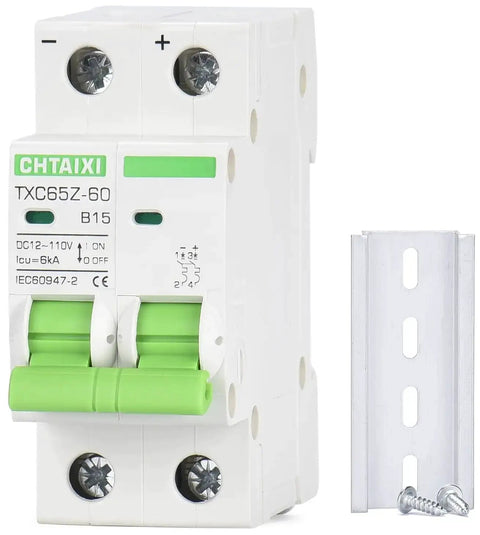

✅ Mounting: 35 mm DIN rail compatible
✅ Termination: screw clamps or M5 wire lug
✅ Applications: solar PV, RVs, battery power systems
✅ Pack size: 1 unit

💡 What is a DC circuit breaker used for in solar power and RV electrical systems?

These devices protect DC circuits from overload and short circuits and enable safe isolation. - Protects battery banks and solar arrays from overloads and faults - Provides quick disconnection to prevent wiring damage and fires - Easy DIN rail mounting for standard panels and enclosures
