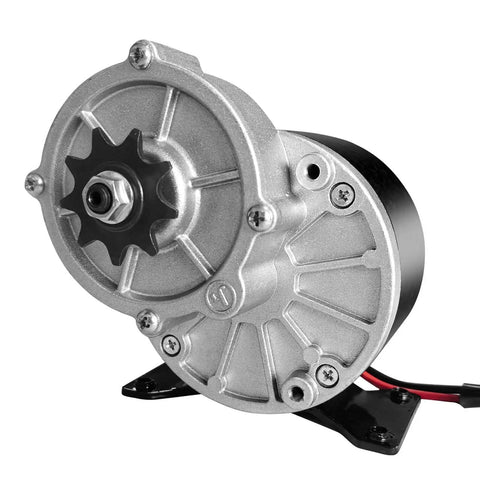

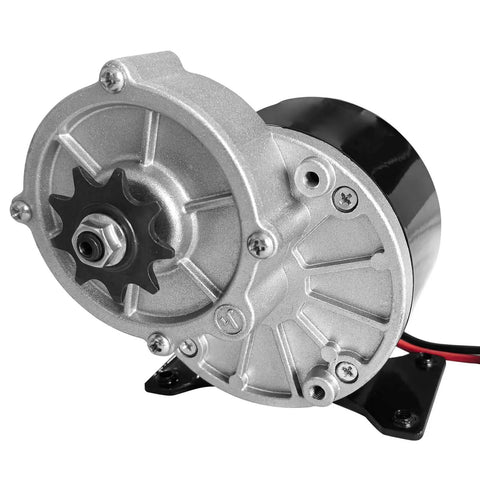

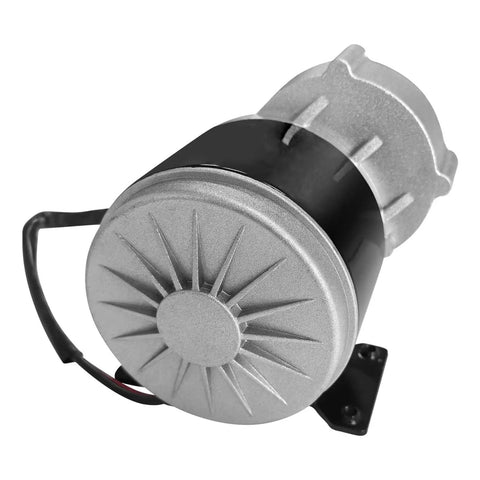

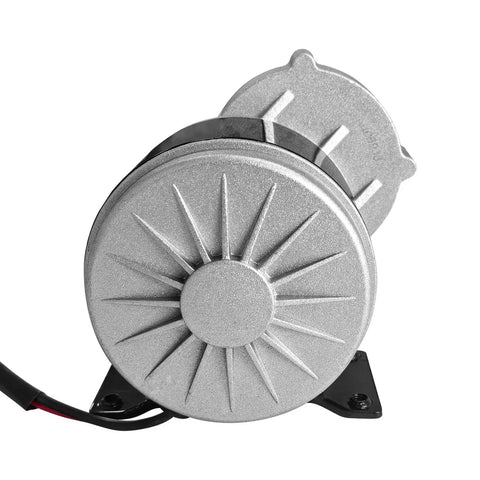

12V 250W Gear Reduction Motor With 9 Tooth Sprocket MY1016Z2 Brushed Drive Motor For E Scooters Electric Wheelchairs Motorcycles Massagers And Mowers High Torque

Single 12V 250W geared motor with 9-tooth sprocket
✔️ Output 300 rpm, 9-tooth 410 sprocket, 26.8A, 78%+ efficiency

This compact DC gear motor combines a 12V brushed drive with a 9-tooth sprocket, built for small electric vehicles and gear-driven machines. It's commonly used in e-scooters, electric bikes, pocket bikes, ATVs, and DIY robotics projects.

✅ No-Load Speed: 3850 rpm
✅ Rated Speed: 3000 rpm
✅ Gear Ratio: 9.78:1
✅ Actual Output Speed: 300 rpm

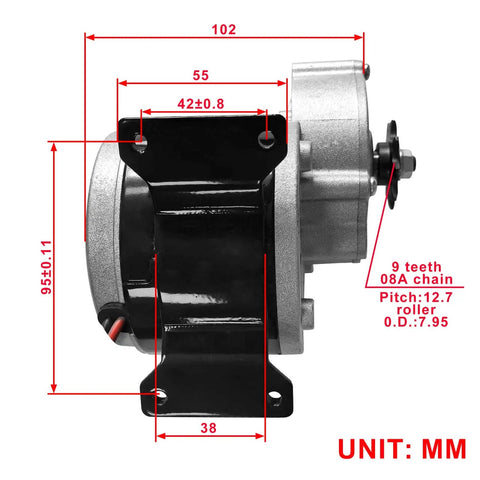

✅ Sprocket: 9 teeth, 410 pitch (12.7 mm)
✅ Pitch: 12.7 mm (1/2 in)
✅ Tooth Thickness: 3 mm (0.118 in)
✅ Inside Diameter: 11 mm (0.433 in)

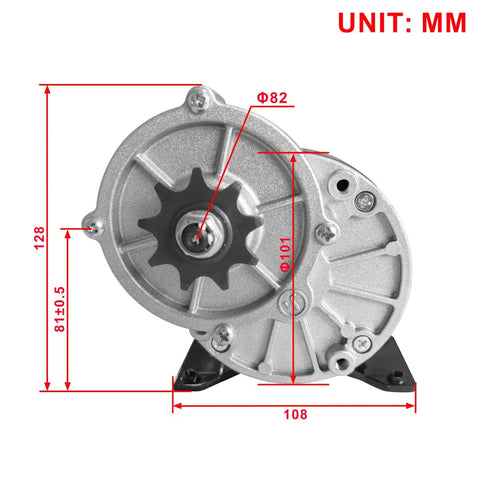

✅ Outside Diameter: 41 mm (1.61 in)
✅ Rated Current: 26.8 A
✅ No-Load Current: 2.5 A
✅ Efficiency: >78%

💡 What is a geared DC motor used for in DIY projects?

Geared motors deliver high torque at low speeds, handy for moving loads and driving mechanisms. - high torque at low speed for wheels and lifts
- simple wiring and PWM control for speed adjustment
- useful in DIY e-scooters, bikes, robots and small machines
