12V Mini Linear Actuator 100mm Stroke 120N 4 Inch Travel High Speed 0.6 Inches Per Second For Robotics And Home Automation With Mounting Brackets Durable Aluminum Housing Ideal For DIY Projects Window Lifts Cabinet Doors And Automated Systems

Compact 12V 100mm Stroke Mini Linear Actuator for DIY

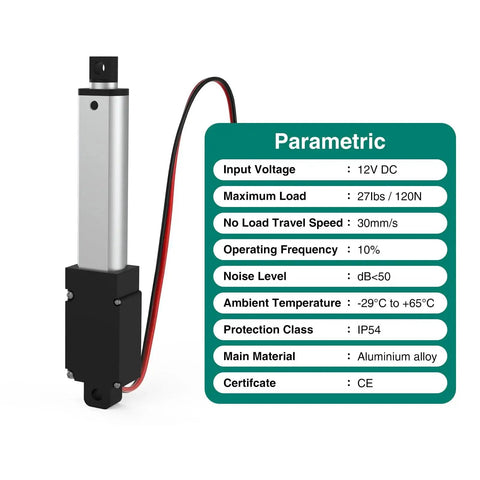

✔️ 100 mm stroke, 204.5 mm extended, 120 N max, 2.5 A, 0.6 in/s

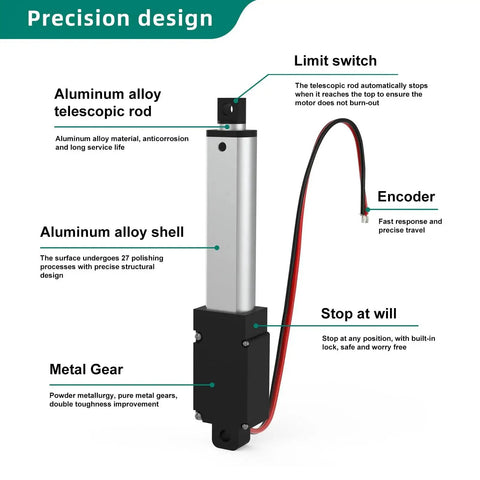

This compact 12V electric micro stroke linear actuator is designed for small lifting tasks in robotics, home automation, and cabinet/window applications. Package includes 1 actuator and 2 mounting brackets. It combines sturdy aluminum housing with a built-in limit switch for reliable, controlled movement.

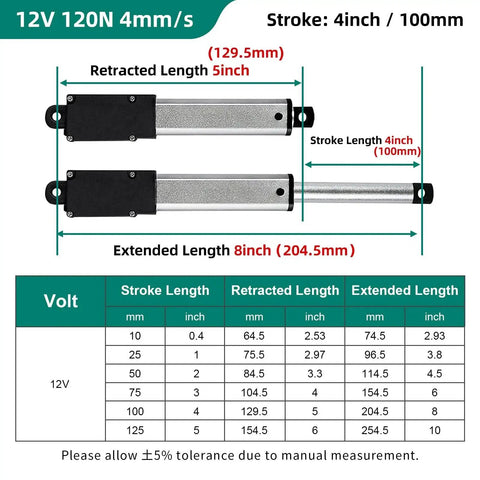

✅ Stroke 100 mm (4")
✅ Retracted length 129.5 mm (5.1")
✅ Extended length 204.5 mm (8.08")
✅ Travel speed 0.6 in/s (15 mm/s)
✅ Max current 2.5 A
✅ Max load 120 N (27 lb)
✅ IP54 protection with built-in limit switch

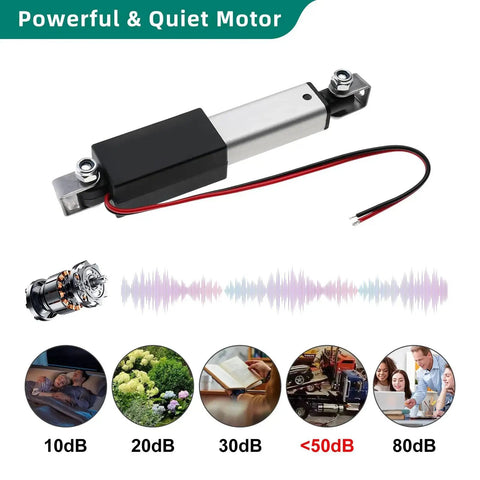

✅ Aluminum housing, low noise under 50 dB
✅ Includes 1 actuator and 2 mounting brackets

💡 What is a 12V mini linear actuator commonly used for in DIY projects? This handy device is great for small lifts in cabinets, windows, robotics, and home automation.

- Handy for small lifts in cabinets, windows, and robotics

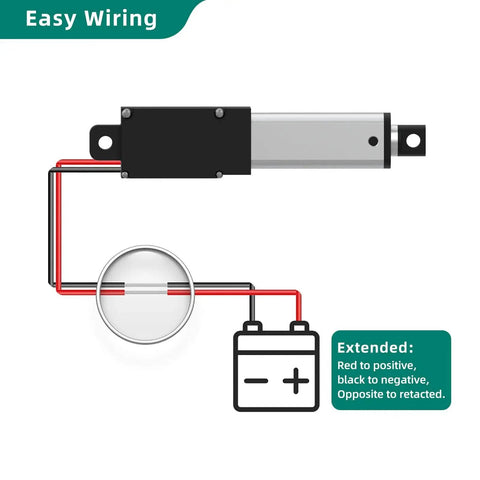

- Simple 12V DC wiring makes quick setup
- Built-in limit switch ensures safe, end-of-travel stopping
- Aluminum housing for durability in DIY projects
