12V Mini Linear Actuator With IP54 Waterproof Protection For Windows And Doors Beds RVs And Industrial Equipment 6.7 Lbs Thrust 30 N 1.2 Inch Stroke Micro Motion With Brackets For DIY Projects Justech

12V Mini Linear Actuator with IP54 Shielding for DIY

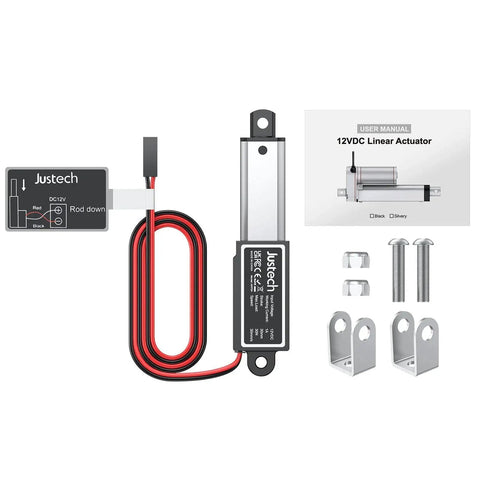

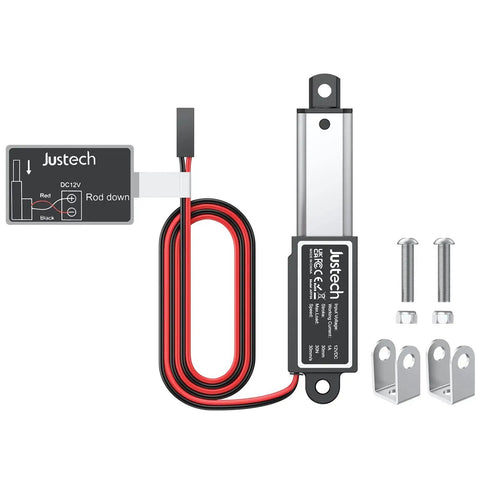

✔️ 6.7 lb thrust, 30 mm stroke, IP54, bracket included (single unit)

This compact actuator converts rotational motion into precise linear movement, ideal for windows, doors, beds, RVs, and DIY automation projects. It also serves as a sturdy linear slide unit for hobbyists and light industrial setups.

✅ Max load: 6.7 lbs (30 N)
✅ Pull load: 5.28 lbs (24 N)
✅ Stroke: 30 mm (1.2 in)

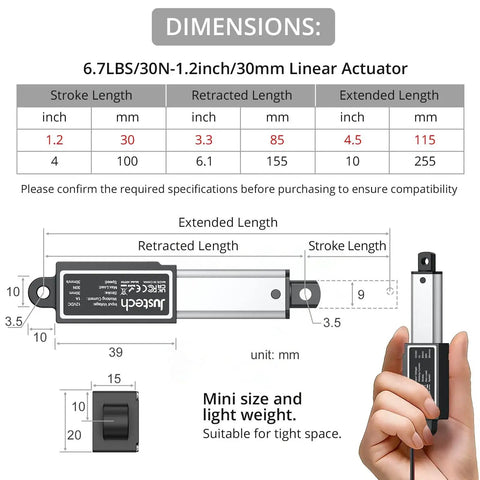

✅ Retracted length: 85 mm (3.3 in)
✅ Extended length: 115 mm (4.5 in)
✅ Non-load speed: 30 mm/s; load speed: 28 mm/s

💡 What is a 12V mini linear actuator used for in DIY projects?

A handy overview for common tasks and basic setup.

- Push, pull, lift, and position small loads in tight spaces.
- Simple 12V power source works with common hobby electronics.

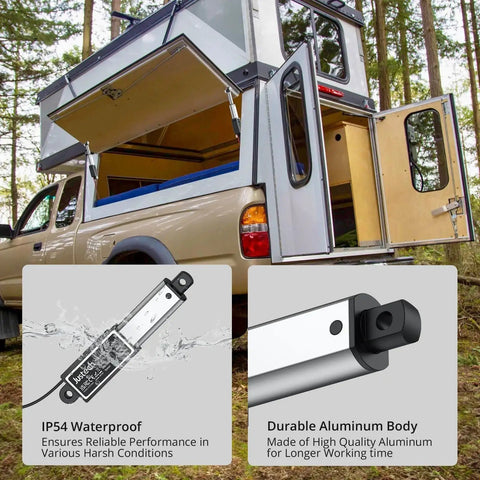

- IP54 rated for outdoor use and dusty environments.
- Compact size fits doors, windows, beds, and small machinery.
