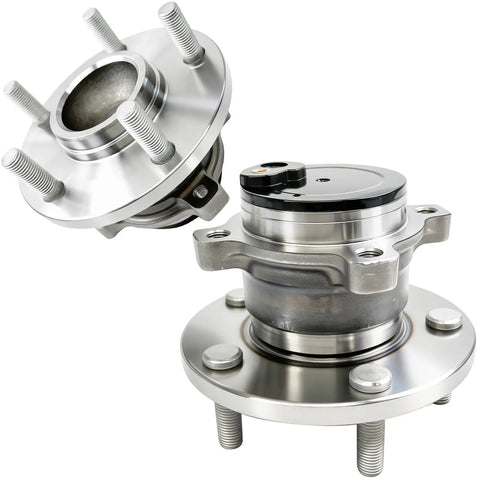

2 Pack Rear Wheel Bearing Hub Assembly 512347 For Mazda 3 2004 To 2013 And Mazda 5 2006 To 2010 2012 To 2017 5 Lug With ABS Direct Fit Bolt On Ready To Install High Quality Aftermarket Replacement Part
UPC:
✔️ Direct-fit, bolt-on hub with ABS, 5-lug, pre-lubricated

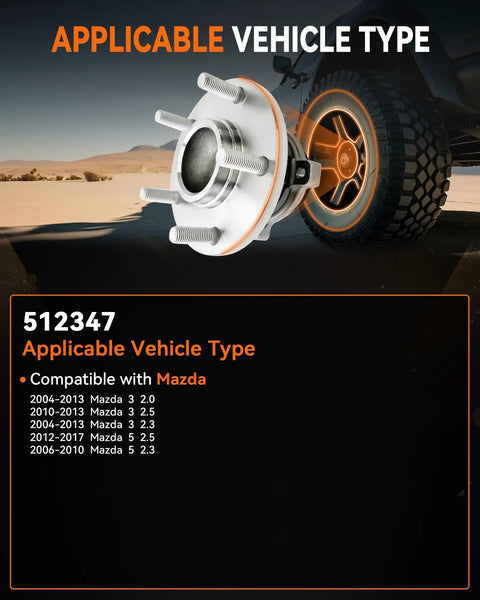

This high-quality wheel hub assembly is a direct-fit replacement for Mazda 3 (2004-2013) and Mazda 5 (2006-2010, 2012-2017). The 2-pack covers both rear wheels, featuring an ABS sensor, rust-resistant wheel studs, and bearings that arrive pre-lubricated for immediate install.

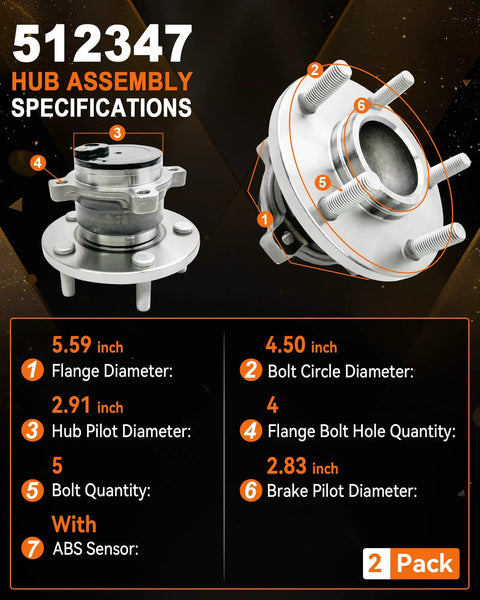

✅ Flange diameter: 5.59 in (142 mm)
✅ Bolt circle diameter: 4.50 in (114.3 mm)
✅ Hub pilot diameter: 2.91 in (73.9 mm)
✅ Brake pilot diameter: 2.83 in (71.8 mm)
✅ 4 flange bolt holes; 5 bolts total
✅ ABS sensor included
✅ Rust-protected wheel studs
| Dimension | Inches | Millimeters |
|---|---|---|
| Flange diameter | 5.59 | 142 |
| Bolt circle diameter | 4.50 | 114.3 |
| Hub pilot diameter | 2.91 | 73.9 |
| Brake pilot diameter | 2.83 | 71.8 |
| Flange bolt holes | 4 | 4 |
| Bolts | 5 | 5 |
💡 What is a wheel hub assembly used for in a vehicle and why replace it with a Mazda compatible unit? The wheel hub assembly is the mounting point for the wheel and contains the bearings plus ABS sensor, enabling safe rotation and braking. Handy notes: - wheel hub assembly with sealed ball bearing for reliable rotation - direct-fit, bolt-on design for easy installation - includes rust-resistant studs and pre-lubrication for long life - 2-pack option keeps rear wheels in sync and balanced
