2 Pole 40 Amp 24V AC Contactor For HVAC Outdoor Units And Condensers, Heavy Duty Relay Switch For Compressors And Motors, 50/60Hz, Up To 600VAC, Silver Alloy Contacts And Solid Copper Coil
UPC:
✔️ 2P load 50A resistive, 24V coil, 50/60Hz, up to 600VAC
This rugged HVAC contactor is designed to switch high-current loads such as compressors and motors in outdoor units and condensers. It’s used in both residential and light commercial HVAC systems for reliable control of cooling equipment.
✅ 2-pole design with 40A FLA
✅ 50A RES (load) rating
✅ 24V coil, 50/60Hz
✅ Up to 600VAC switching capacity

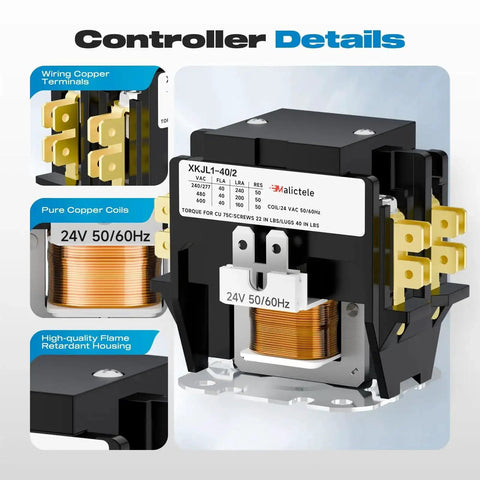

✅ Silver alloy contacts and solid copper coil

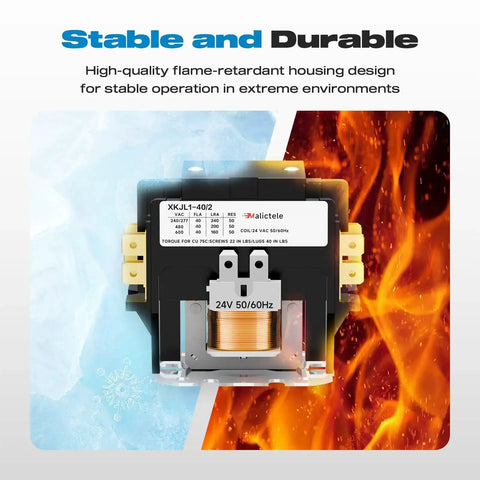

✅ Flame retardant housing and all copper terminals
✅ Captive screws, lugs, covers and quick connect spade terminals
✅ Class B insulation, sealed 24V coil
✅ Easy to install with base fixing holes
✅ Wide HVAC and industrial applications
💡 What is an HVAC contactor used for in outdoor units?
These handy switches control the power to compressors and condenser fans from a low-voltage control circuit, protecting equipment and simplifying wiring.
- Handy way to switch compressors and condenser fans from a control signal
- Provides safe isolation for starting and running motors
- Durable, outdoor-ready design with flame retardant housing
