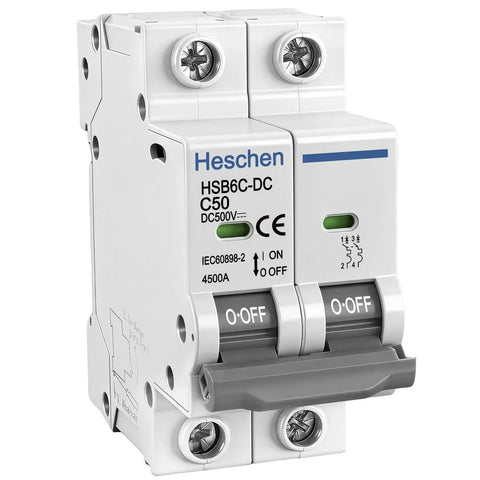

2 Pole DC Solar PV Circuit Breaker Type C Non-Polarized 500V 32A With 4.5kA Breaking Capacity For Solar Panels And Grid Setups DIN Rail Mounting 35mm Gray

2-Pole DC Solar Breaker, 32A at 500V, DIN Rail Mount
✔️ 2P, Type C non-polarized, DC500V, 4.5kA, gray, 1 pc

This compact 2-pole DC circuit breaker is built for solar PV installations and grid setups. It delivers reliable overcurrent protection for DC circuits and mounts neatly on 35 mm DIN rails used in control panels and combiner boxes.

✅ Pole: 2P
✅ Type: C / Non-polarized
✅ Current rating: 32A
✅ Rated voltage: DC 500V
✅ Breaking capacity: 4.5 kA

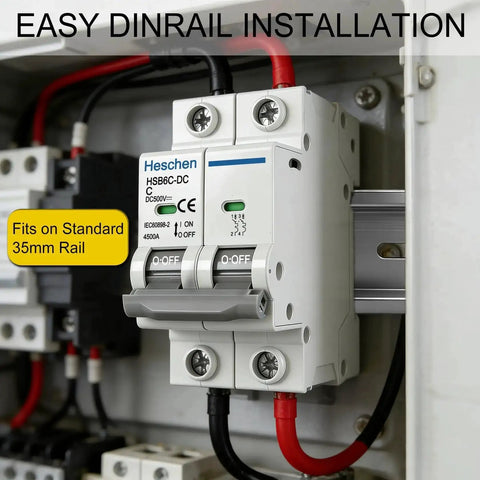

✅ Mounting: DIN rail, 35 mm, Gray

💡 What is a DC solar circuit breaker used for in PV installations? It's handy for protecting DC wiring and helping keep solar systems safe and compliant.

✅ Safeguards DC conductors from faults in solar strings
✅ Interrupts fault currents quickly to prevent damage
✅ Fits standard 35 mm DIN rails in control panels
✅ Suitable for 500V DC solar circuits up to 32A and 4.5kA
