200mm Effective Travel Dual Optical Axis Manual Sliding Table with SFU1605 Ball Screw, Linear Rail Guide and Handwheel, C7 Precision, Heavy Load Metal Build for CNC Equipment Transformation, Automatio

200mm Manual Linear Sliding Table with Dual Optical Axis and Handwheel
✔️ SFU1605 Ball Screw Linear Stage for CNC Conversion and Fine Adjustment

This manual linear sliding table is built for non standard automation, CNC equipment upgrades, inspection setups, and precision positioning where hand control and smooth travel are important. It uses a dual optical axis guide system with an SFU1605 ball screw and handwheel to deliver steady movement, solid load handling, and repeatable accuracy. Pack size includes one complete manual sliding table with handwheel and tools.

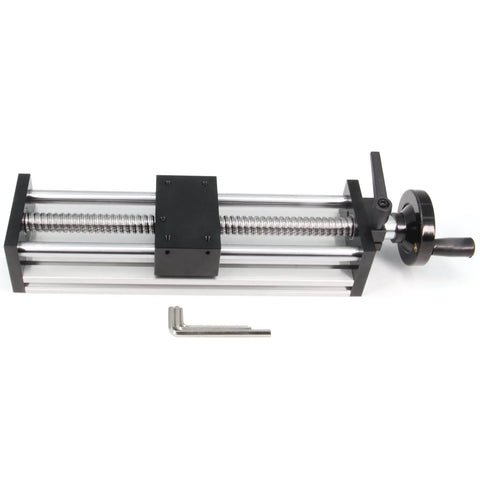

✅ Pack size: 1 manual sliding table with handwheel, 3 Allen wrenches
✅ Drive type: handwheel manual crank
✅ Linear guide system: dual optical axis
✅ Ball screw type: SFU1605
✅ Ball screw diameter: 16mm (0.630 in)
✅ Lead pitch: 5mm (0.197 in) per revolution
✅ Precision grade: C7
✅ Effective travel: 200mm (7.87 in)
✅ Repeat positioning accuracy: ±0.03mm
✅ Max horizontal load: 30kg
✅ Max vertical load: 15kg
✅ Aluminum alloy body with sandblasted rust resistant surface
✅ Smooth operation with low noise
✅ Four M5 threaded holes for workpiece mounting

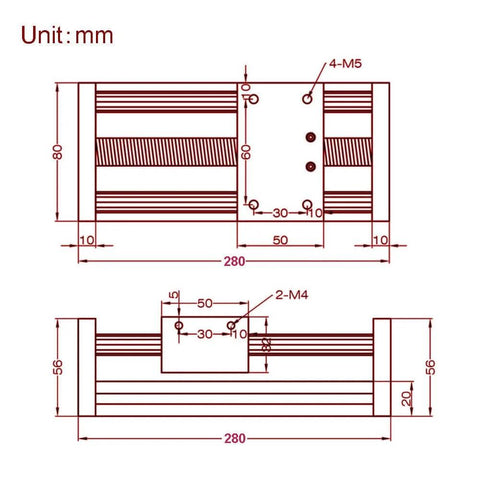

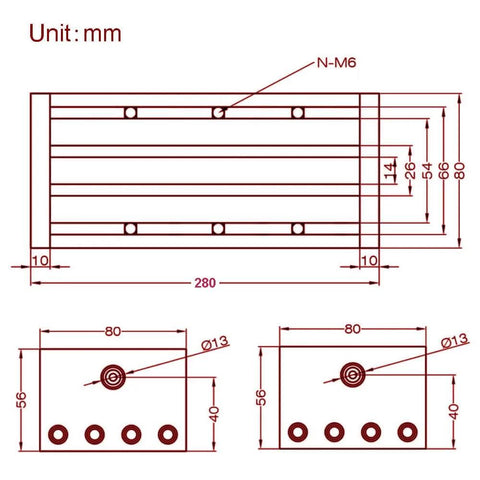

Dimensions and Motion Specs
Ball Screw Diameter 16mm (0.630 in)
Lead Pitch 5mm (0.197 in)
Effective Travel 200mm (7.87 in)
Repeat Accuracy ±0.03mm
Weight 2000g

This manual linear stage delivers controlled positioning, smooth hand driven motion, and dependable accuracy for lab work, CNC retrofits, and mechanical adjustment tasks.

💡 Why are dual optical axis manual ball screw stages used for precision adjustment and CNC conversion?
Manual ball screw stages are designed to give accurate positioning without motors while keeping motion smooth and predictable.

• Ball screw drive reduces friction for finer hand control

• Fixed lead pitch provides consistent displacement per handwheel turn

• Dual optical axis guides improve stiffness and alignment under load

• Manual operation is ideal for inspection, calibration, and fine tuning work

A handy solution when you want smooth hand controlled motion, reliable accuracy, and solid load support for precision equipment and CNC transformation projects.
