200mm Roller Wheel Position Meter With Rotary Encoder 1000 PPR Push Pull Output For Lift Rail Mounting Bracket Durable Steel Frame And Pro Grade Length And Distance Measurement Sensor

200mm Wheel Position Encoder for Lift Rail Systems
✔️ 5-26V supply, 1000 PPR, 1 mm unit, 200 mm wheel, single unit

This compact wheel-position encoder with a 200 mm perimeter wheel is designed for precise length and distance measurements in lift rails, automated conveyors, and linear-rail setups. It ships with encoder, mounting bracket, wheel, and screws for quick mounting.

✅ 200 mm perimeter wheel diameter (7.87 in)
✅ 1000 PPR encoder resolution
✅ Push-pull output with distance-proportional signal
✅ Power supply 5-26V DC

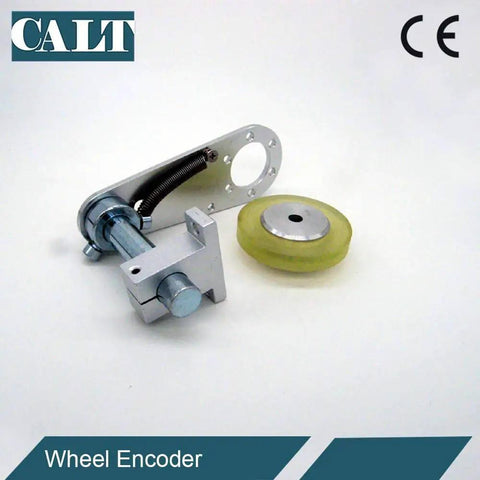

✅ Includes encoder, bracket, 200 mm wheel and screws
✅ Mini measuring unit 1 mm (0.039 in)

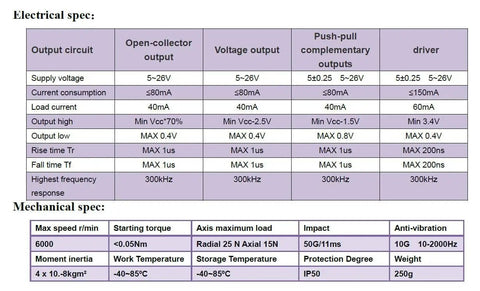

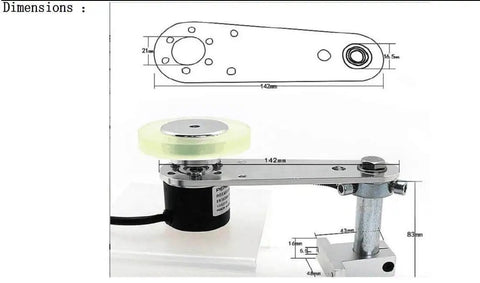

Dimension	Metric	Imperial
Wheel diameter	200 mm	7.87 in
Mini measuring unit	1 mm	0.039 in
Voltage	5-26V	N/A
Output	Push-pull	N/A
Resolution	1000 PPR	N/A

💡 What is a wheel position encoder used for in length measurement and rail systems? This handy device provides precise readings and easy integration in automated setups. - Accurate distance readouts in rails, lifts, and conveyors - Simple wiring with 5-26V supply and push-pull output - 1000 PPR resolution with 1 mm subdivision for repeatable positioning
