22 Inch Stroke Electric Linear Actuator, 100 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

22 Inch Stroke Electric Linear Actuator - 100 lbs Force, IP66 Water Resistance, 1-Unit Pack (PA-04) for Automation, Manufacturing & Automotive
✔️ 1-Unit Pack

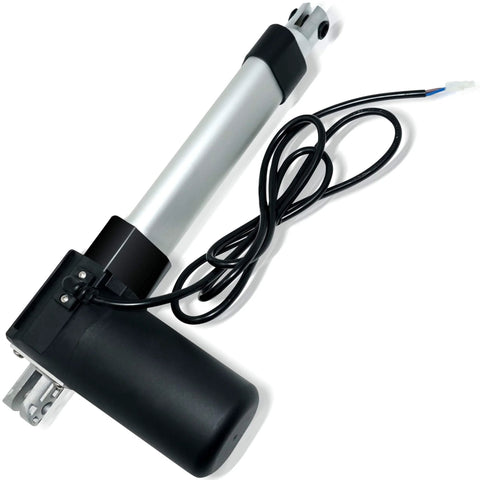

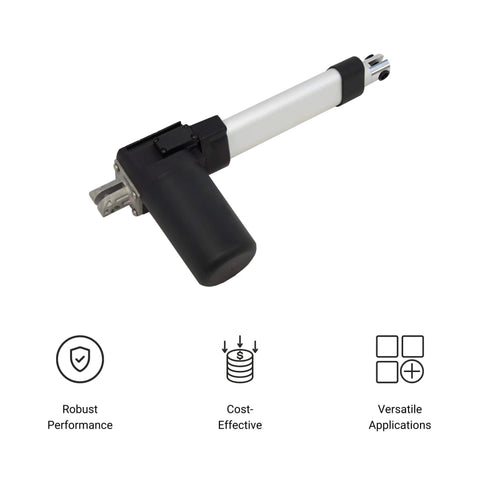

- The PA-04 22 inch stroke electric linear actuator is a handy, high-load solution designed for automation and manufacturing environments, including automotive lines, factory automation, and home automation systems. Pack Size: 1 unit.

✅ 12 VDC operation

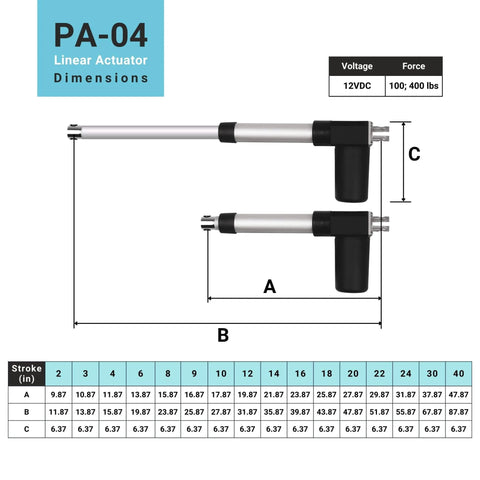

✅ Stroke length: 22 in (558.8 mm)

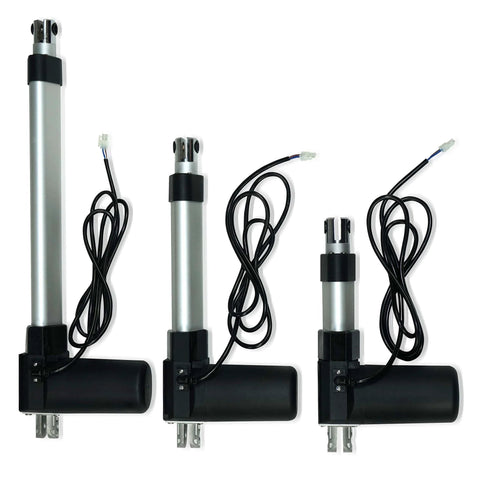

✅ Stroke range: 1 in (25.4 mm) to 40 in (1016 mm)
✅ Load capacity: 100 lbf (445 N) approx 45.3 kgf
✅ IP66 ingress protection for dust and water resistance
✅ Connector: standard 2-Pin Molex Mini-Fit Jr for easy installation
✅ Certifications: ISO 9001:2015 for quality and durability
✅ Operating voltage: 12 VDC

💡 In a rugged outdoor automation setup that relies on a 22 in PA-04 actuator with a 12 VDC supply, how does it maintain precise, repeatable motion across the full 1-40 inch stroke under load, and what mounting, limit-switch, and wiring considerations should engineers plan for to ensure reliable operation?

Answer: The actuator’s rugged build and IP66 rating support reliable operation across the full stroke when properly installed and powered.

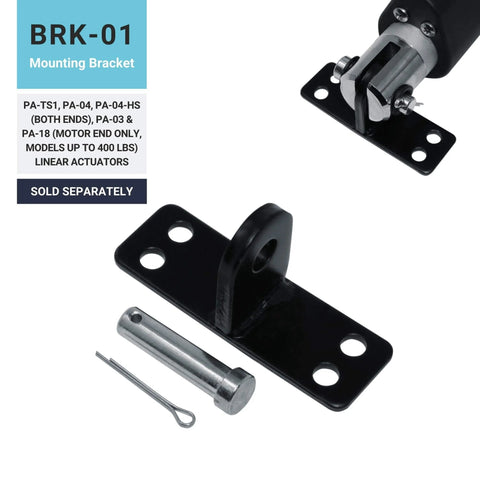

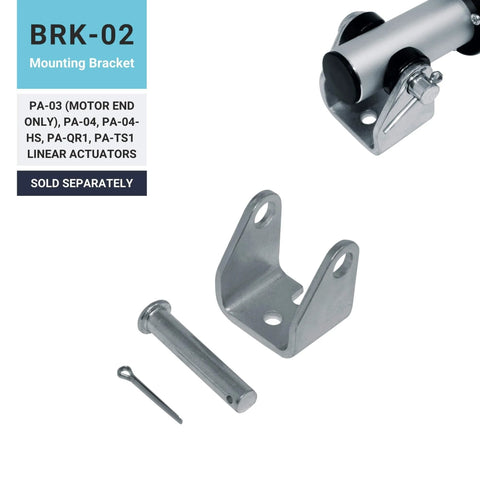

• Ensure a solid mounting that minimizes side loads and keeps the actuator aligned through 1-40 in of travel (and use proper end stops).
• Use a proper 12 VDC power supply with sufficient current to achieve the 100 lb thrust across the stroke, and integrate with your control system to prevent stall conditions.
• Plan weatherproof cable routing and strain relief for the Molex Mini-Fit Jr connector to guard against moisture and vibration in outdoor use.
• Incorporate limit switches or feedback sensors to prevent over-travel and coordinate with the control logic for smooth, repeatable cycles.
