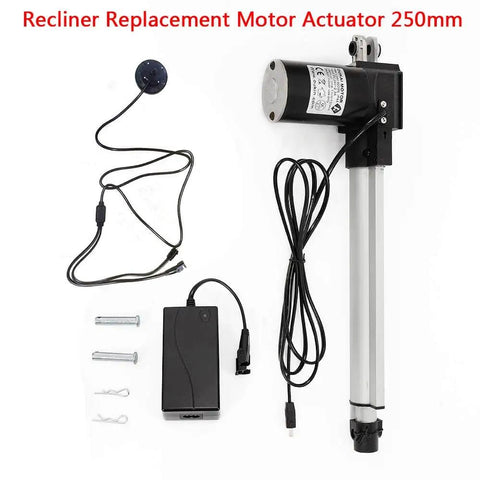

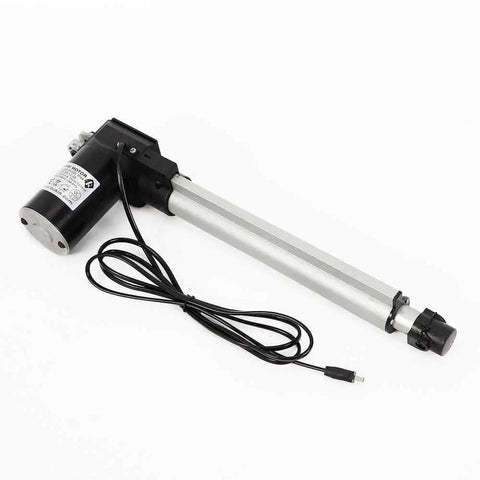

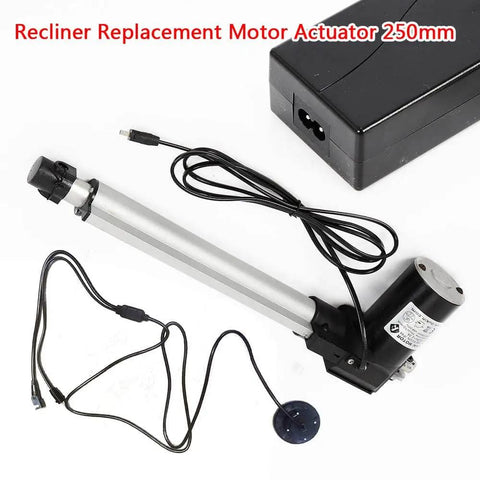

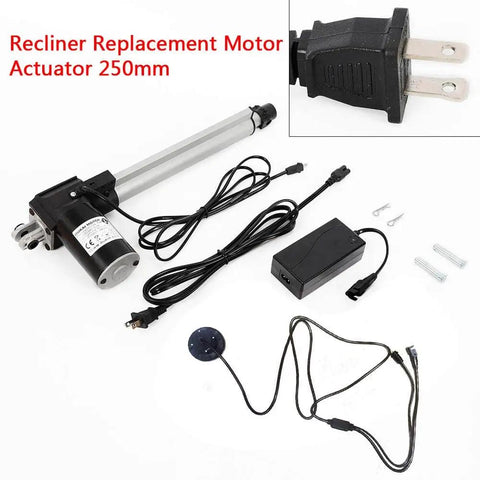

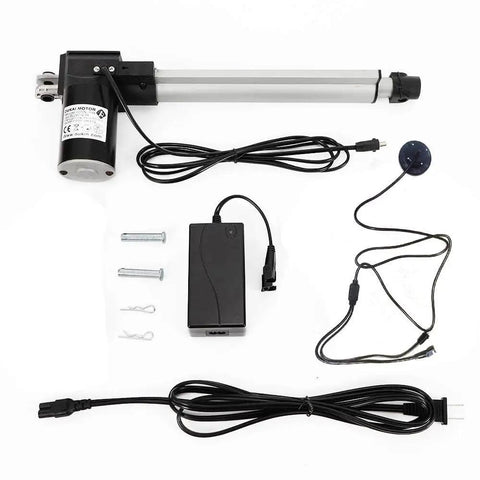

24V Electric Recliner Linear Actuator Kit With 250mm Stroke For Sofa Lift Chairs Heavy Duty 100Kg Push And Pull Extended 675mm Unextended 425mm No Load Speed 40mm Per Second Rated Load Speed 5mm Per Second Easy Replacement Motor Actuator

✔️ 24V DC motor, 100 kg max push/pull, 675 mm extended length

This 24V electric recliner actuator kit is designed to lift and recline sofa sections or lift chairs. It’s ideal for sofa retrofits, medical chairs, and home theater seating where smooth, quiet motion is required.

✅ Stroke length: 250 mm
✅ Unextended length: 425 mm
✅ Extended length: 675 mm
✅ Voltage: 24 V DC
✅ Max push/pull: 100 kg
✅ No-load speed: 40 mm/s
✅ Rated load speed: 5 mm/s
✅ Thrust: up to 1000 N in push/pull
✅ Aluminum outer tube Ø30 mm; inner Ø24 mm
✅ IP44 protection; noise 48 dB
✅ Duty cycle: 10% (2 min on, 18 min off)
✅ Weight: 3.3 kg

💡 What is a 24V recliner linear actuator used for in lift chairs and sofa motion systems?

This handy device powers the lift and recline motions in seating so users can get in and out easier and enjoy adjustable comfort.

• Raising seats, tilting backs, and extending footrests in recliners
• Perfect for sofa upgrades, rehab chairs, and DIY lift projects
• Designed for straightforward retrofit with standard mounting patterns
• Operates on a safe 24V DC supply with built-in end-stop switches
