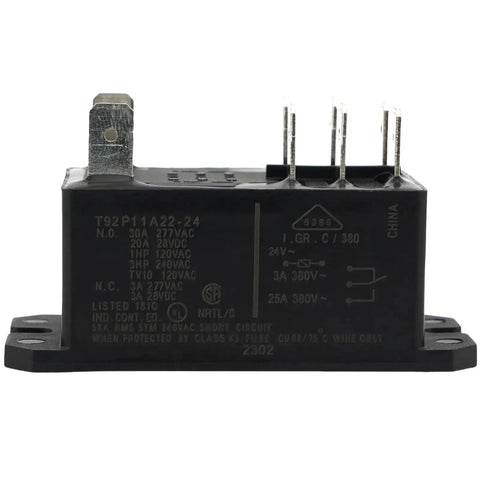

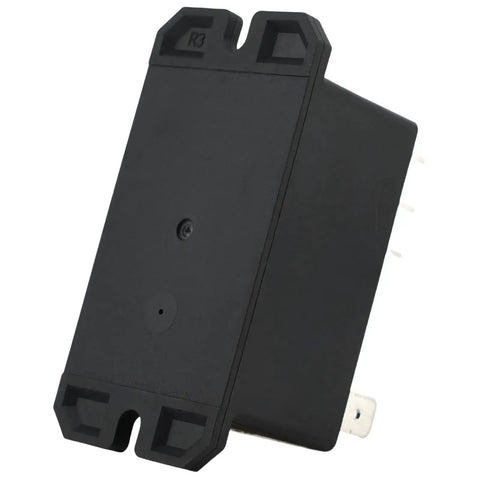

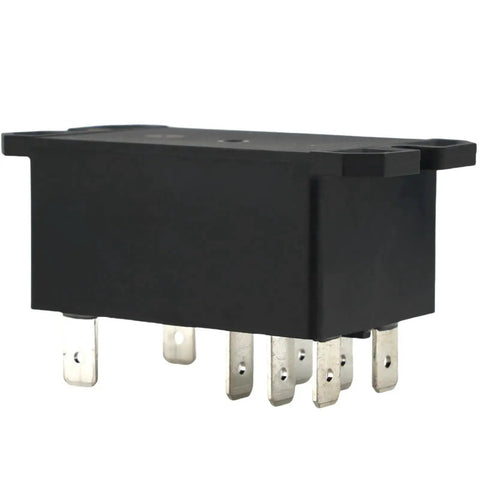

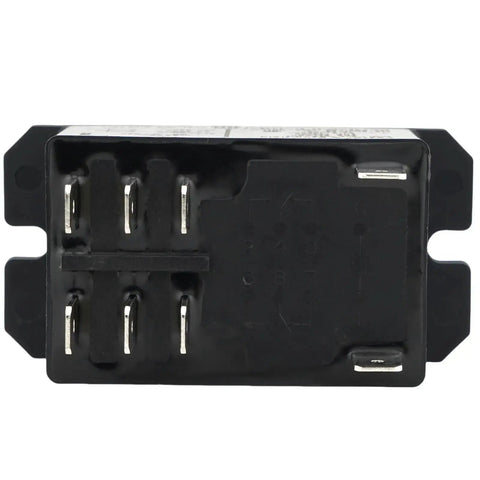

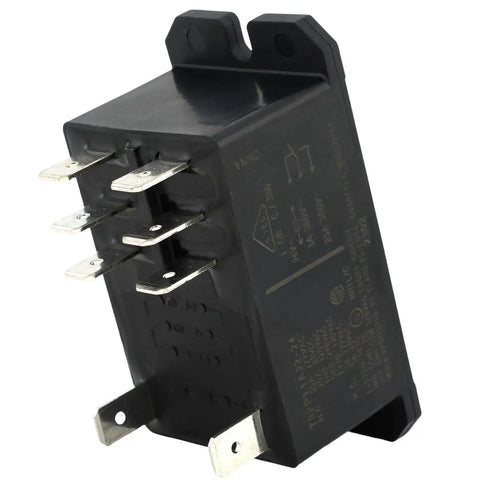

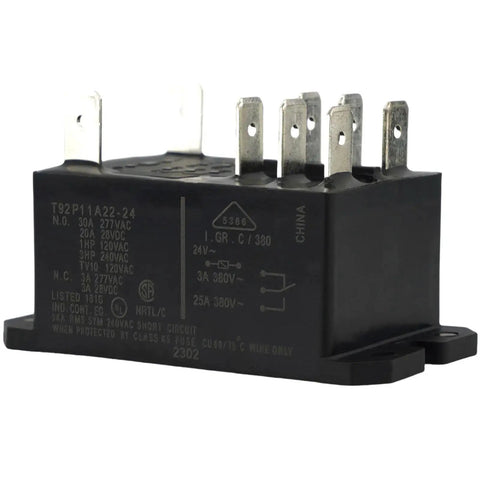

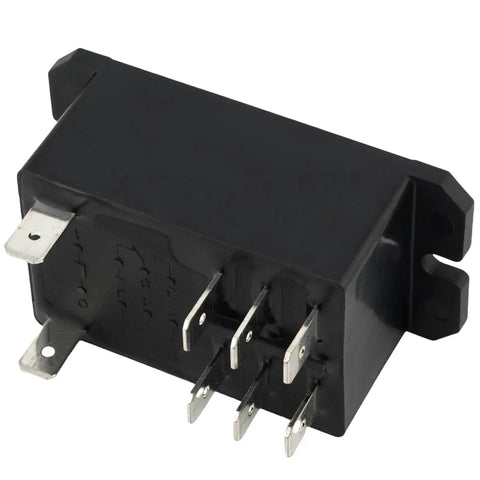

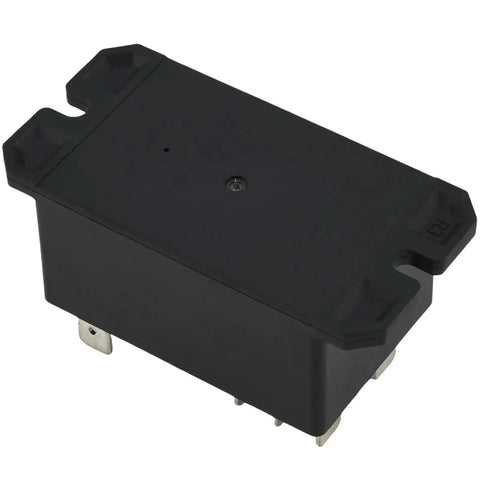

24VAC 30A General Purpose High Power Relay With DPST NC Contacts Two Form C For Automotive And Electrical Systems Ideal For Heavy Duty Switching And Reliable 24 Volt Control

Single 24VAC 30A DPST-NC Relay for Automotive Control
✔️ 30A high power DPST-NC relay, 24VAC coil, -55 to 65°C

Designed for automotive and electrical control, this 24VAC relay handles heavy loads with two Form C contacts, a handy choice for motor starters, lighting circuits, and power distribution in harsh environments.

✅ Nominal coil voltage: 24VAC
✅ Contact form: DPST-NC (2 Form C)
✅ Contact material: AgCdO
✅ Rated current: 30A/40A NO; 3A NC
✅ Ambient temperature: -55°C to 65°C
✅ Connector type: Quick Connect
✅ Package content: 1 x T92P11A22-24

💡 What is a 24VAC high current relay used for in automotive and industrial control?

It's handy for powering heavy loads while keeping control circuits isolated.

• heavy-load switching for motors, pumps, and solenoids
• two Form C contacts enable independent circuit control
• AgCdO contact material extends service life in tough settings
• 24VAC coil provides reliable control in automotive and industrial systems
