3.17mm to 6.35mm Rigid Flanged Coupler Shafts connector
VXB

3.17mm to 6.35mm Rigid Flange Coupling - Shaft Connector for Motors


$38.06 CAD $51.37 CADyou save $13.31 CAD
SKU: 3-17-6-35MM-COUPLER-SHAFT
UPC: 00193019145050






3.17mm-6.35mm Rigid Flange Coupling - Shaft Connector for Motor or Guide Rods

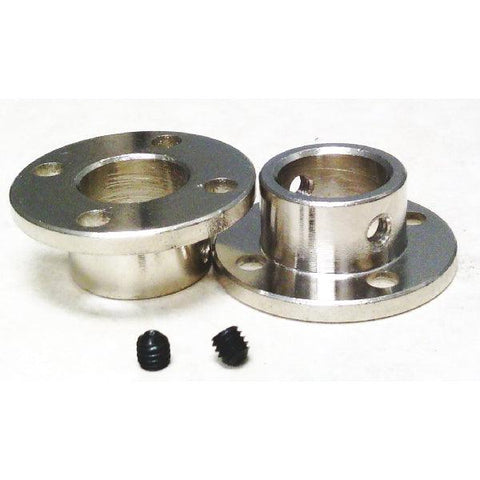

 3.17mm to 6.35mm Flange Coupling Motor Guide Shafts Connector. The coupler includes 2 flanges, one 3.17mm bore and one 6.35mm bore, so you can transmit rotation from a 3.17mm diameter shaft to 6.35mm diameter shaft

  • Inner Diameter 1: 3.17mm
  • Inner Diameter 2: 6.35mm
  • Cylindrical Diameter: 10mm
  • Overall Height: 12mm
  • Bottom Diameter: 22mm
  • Fixed Hole Screw: M3
  • Fixed Hole Distance: 16mm
