32 Amp DC 1200V Solar Disconnect Switch Isolator With IP66 Waterproof Enclosure For Outdoor PV Panel Systems On Off Built Tough Safety Switch With Weatherproof And Easy Mount

32A DC 1200V Solar Disconnect Switch with IP66 enclosure
✔️ 32A DC disconnect, IP66 waterproof, MC4 terminal, 1200V, single unit

This rugged DC disconnect switch is built for outdoor PV systems, letting you safely isolate solar arrays for maintenance or fault isolation. Its IP66-rated enclosure keeps dust and water out, making it ideal for rooftops, ground mounts, and other harsh outdoor environments.

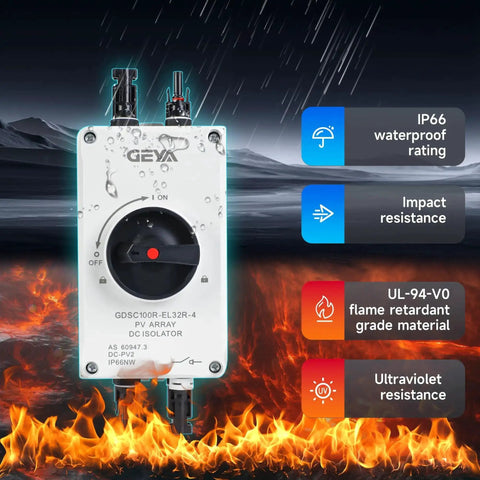

✅ IP66 waterproof enclosure
✅ Rated working voltage: 300V/600V/800V/1000V/1200V
✅ Mechanical life: 9700 cycles
✅ 32A current rating
✅ MC4 terminal connection
✅ Supports 1-4 MPPT lines

💡 What is a solar DC disconnect switch used for in outdoor PV installations? This handy device lets techs isolate panels quickly for safe service.

• Isolates DC circuits safely during maintenance
• Handles up to 1200V DC and 32A to match PV systems
• IP66 rating protects against dust and water outdoors
