350mm Travel Linear Stage Actuator with SFU1605 Ball Screw and NEMA23 Stepper Motor, Square Linear Rails for DIY CNC Router X Y Z Axis, High Precision Heavy Load Design, 5mm Lead, C7 Accuracy, Smooth

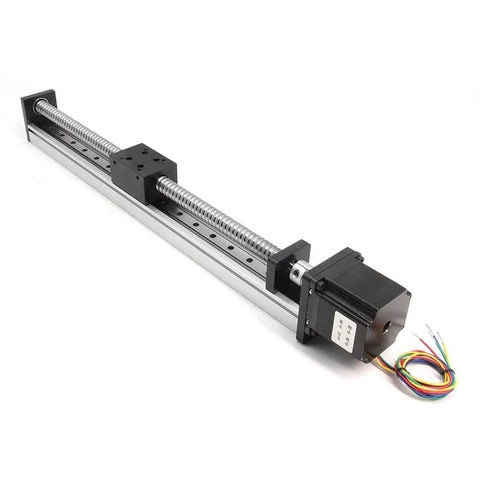

350mm Travel Linear Stage Actuator with SFU1605 Ball Screw and NEMA23 Motor
✔️ Square Linear Rail Actuator Assembly for CNC X Y Z Axes

This linear stage actuator is a complete motion module built for DIY CNC routers, automation projects, and precision positioning tasks. It combines square linear rails with an SFU1605 ball screw and a NEMA23 stepper motor to deliver smooth motion, steady load handling, and repeatable accuracy. Pack size is one fully assembled linear stage with motor installed.

✅ Pack size: 1 linear stage actuator with NEMA23 stepper motor
✅ Ball screw type: SFU1605
✅ Ball screw diameter: 16mm
✅ Lead pitch: 5mm per revolution
✅ Precision grade: C7
✅ Effective travel length: 350mm
✅ Total length: 525mm
✅ Repeat positioning accuracy: ±0.03mm
✅ Speed range: 0 to 100mm per second
✅ Horizontal max load: 30kg
✅ Vertical max load: 15kg
✅ Square linear rails for stable guidance
✅ Four M4 threaded holes for workpiece mounting

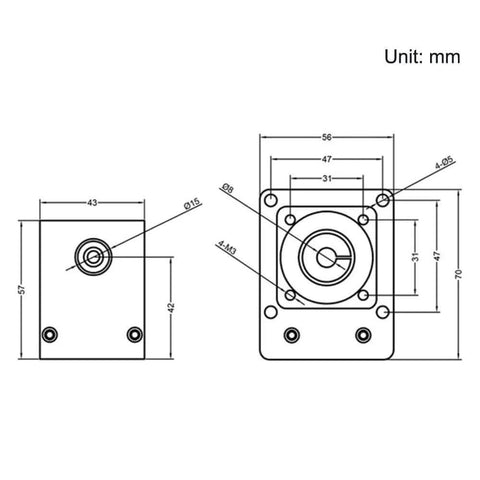

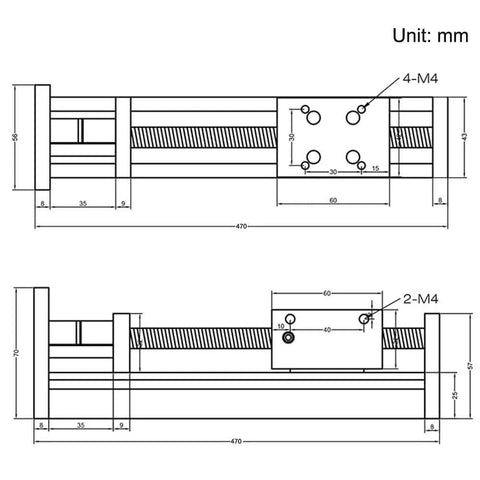

Dimensions and Motion Specs
Ball Screw Diameter 16mm
Lead Pitch 5mm
Effective Travel 350mm
Total Length 525mm
Repeat Accuracy ±0.03mm
Weight 2515g

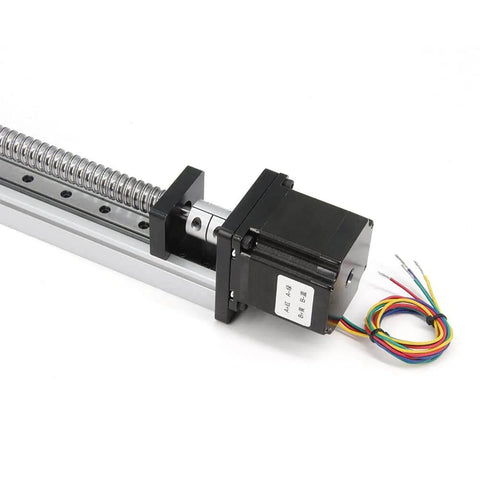

Stepper Motor Specifications
Motor Type NEMA23
Step Angle 1.8 degree
Flange Size 57mm
Motor Length 56mm
Holding Torque 1.2Nm
Rated Current 3A
Rated Voltage 24V
Resistance 0.8 ohm
Inductance 2.4 mH
Rotor Inertia 440gcm
Lead Wires 4
Wiring Red A+ Green A- Yellow B+ Blue B-

This linear stage setup delivers smooth linear motion, dependable accuracy, and easy integration for CNC axes and motion control builds.

💡 Why are ball screw driven linear stage actuators used in CNC positioning systems?
Ball screw linear stages are designed to provide accurate, repeatable motion with low friction and solid load control.

• Rolling ball contact improves efficiency and reduces heat buildup

• Controlled lead pitch supports precise positioning and feed rates

• Square linear rails increase stiffness and resist side loads

• Integrated stepper motor simplifies alignment and system setup

A handy solution when you need clean motion, repeatable accuracy, and a ready-to-use linear axis for CNC and automation projects.
