4 Inch Stroke Electric Linear Actuator, 400 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

4 Inch Stroke Electric Actuator PA-04 - 400 lbs, IP66 Weatherproof for Automation, Manufacturing, and Automotive Pack: 1 Unit
✔️ Heavy-Duty 12 VDC Linear Actuator for Outdoor Use, Durable and Ready for Industrial Integration

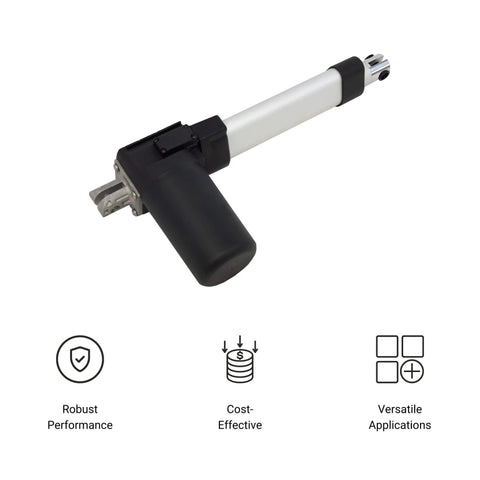

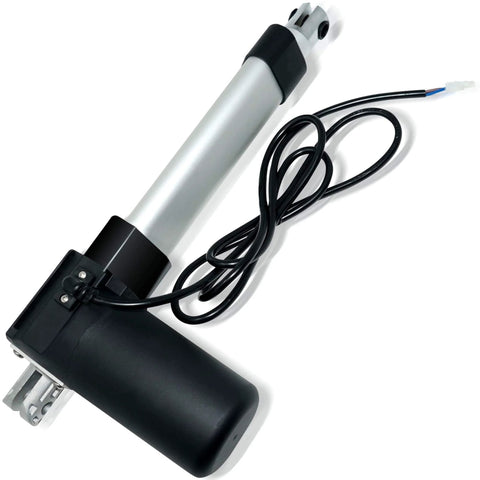

The PA-04 is a rugged 4 in stroke electric linear actuator designed for heavy load automation in automotive, manufacturing, and outdoor installations. Pack: 1 unit.

✅ Stroke: 4 in (100 mm)
✅ Force: 400 lbs (181 kgf)
✅ Voltage: 12 VDC
✅ IP rating: IP66
✅ Connector: 2-Pin Molex Mini-Fit Jr
✅ Certification: ISO 9001:2015
✅ Ideal for: auto assembly lines, outdoor equipment, machinery, and furniture adjustments

Stroke: 4 in (100 mm)
Force: 400 lbs (181 kgf)
Voltage: 12 VDC
IP Rating: IP66
Connector: 2-Pin Molex Mini-Fit Jr
Part Number: PA-04

💡 Q&A

💡 How does the PA-04 4 in stroke actuator handle outdoor automation tasks with heavy loads and weather exposure, and what installation considerations ensure longevity and safe operation in harsh environments?

Short answer: A robust IP66 design plus correct mounting and wiring practices ensure dependable outdoor performance under heavy loads.

✅ IP66 sealing protects against dust and water while delivering 400 lbs of force.

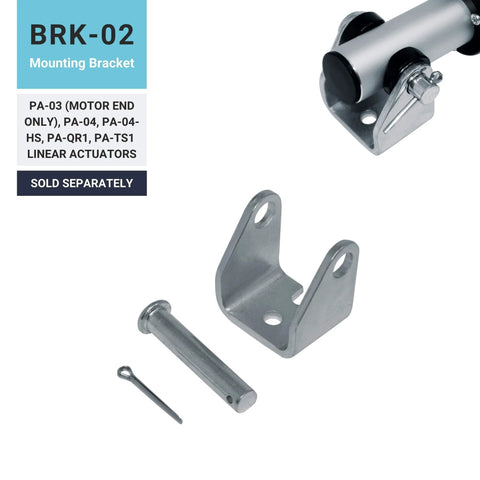

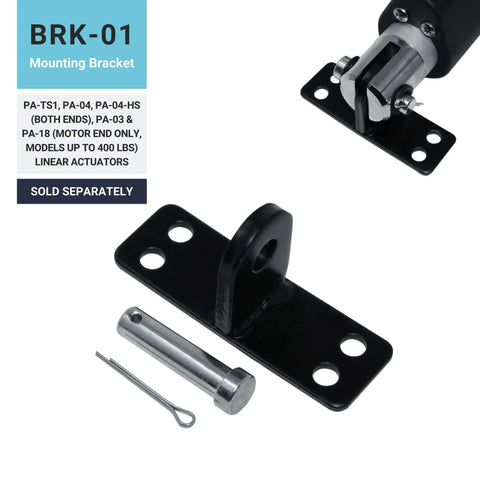

✅ Mount with proper alignment and sturdy brackets to minimize side loads that reduce life.
✅ Use a controller with gradual ramping and reliable limit switches to avoid abrupt starts and stops.
✅ Deliver 12 VDC power with weatherproof wiring, connectors, and strain relief for consistent operation.
