4 rotors 0-300ml/min high flow peristaltic pump 24V stepper motor intelligent variable speed high flow lab liquid dosing pump

DIPump-KK300: Four-Rotor High-Flow Peristaltic Pump for Precise Lab Liquid Dosing, 24V Intelligent Variable-Speed

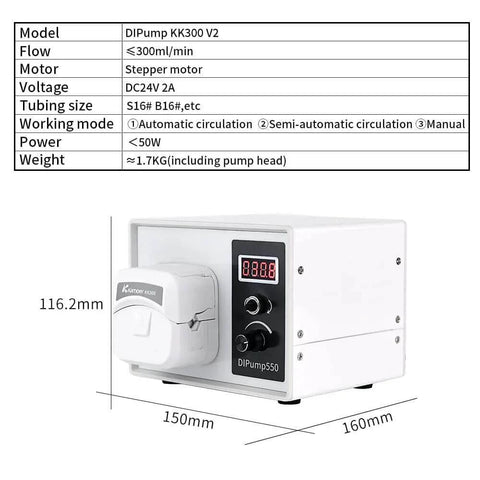

✔️ 4-rotor up to 300 ml/min flow, 24V, 2A, multi-mode control, auto-memory

The DIPump-KK300 is a smart, four-rotor peristaltic pump built for accurate liquid handling in lab benches, pilot plants, and industrial setups. It features fast tube changes, four rotors for consistent flow, and multiple control options. It supports six tubing sizes and ships with 2 m S16 tubing (3.2 mm ID × 6.4 mm OD, 0.126 in × 0.252 in). Pack: 1 unit.

✅ Flow rate up to 300 ml/min with 0.1-400 rpm speed range for precise dosing

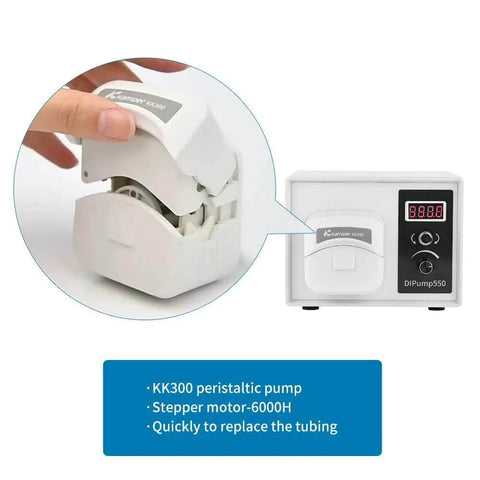

✅ 4-rotor design and fast tube change for quick startup and steady flow
✅ 24V supply, 2A current, noise ≤ 65 dB for clean lab use

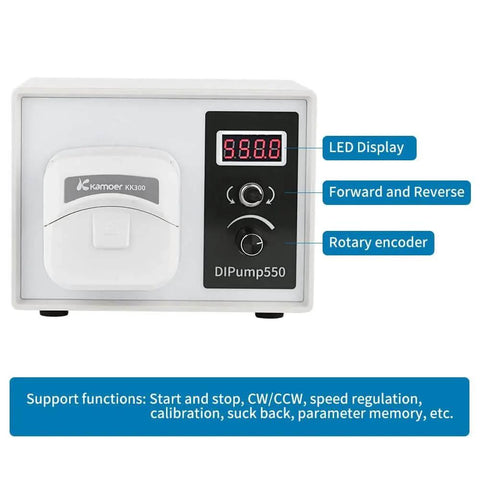

✅ Stepper motor drives precise control; LED 4-digit display shows speed/flow in real time

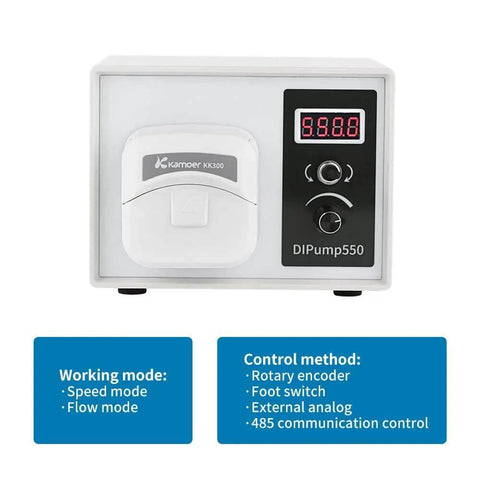

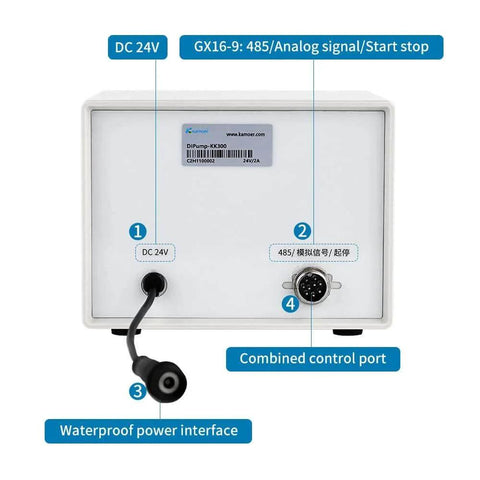

✅ Multiple control modes: rotary encoder, foot switch, external analog 4-20 mA, 0-5 V, 0-10 V, RS-485 Modbus
✅ Built-in features: power-failure memory, calibration, reverse suck back, 3 working modes (fully auto, semi-auto, manual)
✅ Tubing compatibility: supports six sizes; includes 2 m S16 tubing 3.2 mm ID × 6.4 mm OD (0.126 in ID × 0.252 in OD)

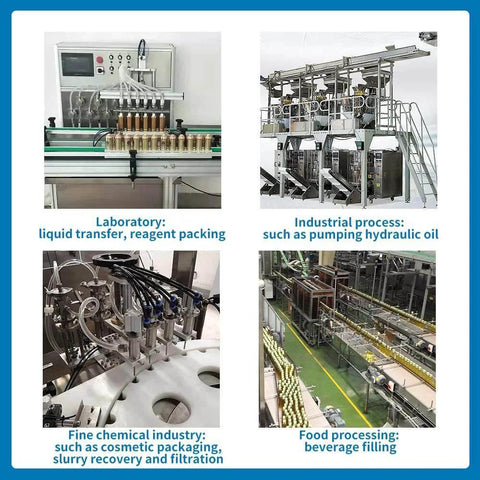

✅ Applications: lab liquid transfer, reagent dispensing, industrial pumping, slurry handling and filtration
💡 What is a peristaltic pump used for in a lab or industrial setting? Peristaltic pumps move liquids by squeezing a flexible tube, keeping the fluid isolated from the pump itself. - Precise, repeatable dosing for reagents and samples - Contamination-free handling since fluid contacts only the tubing - Handles viscous fluids and slurries with gentle transfer - Easy tubing changes to reduce downtime This setup is handy for automated, accurate dosing and high‑flow liquid transfers in labs and production environments.
