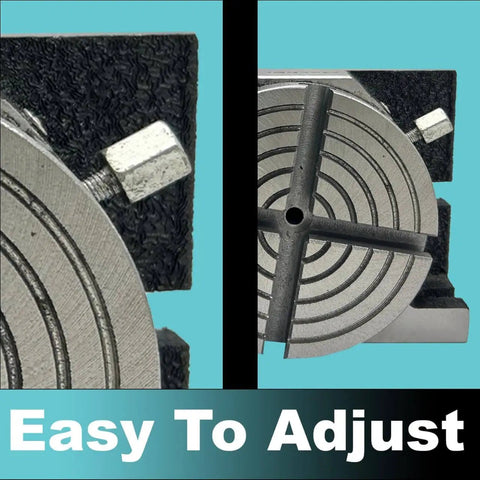

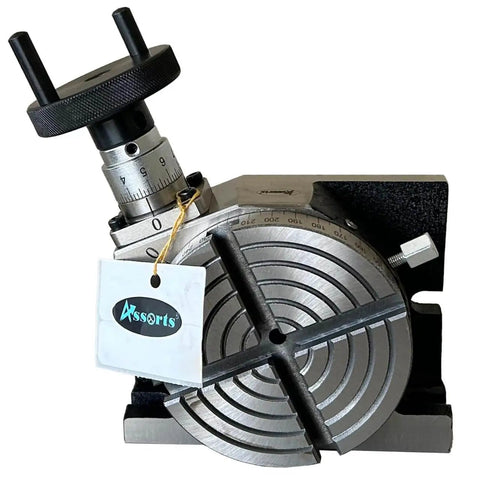

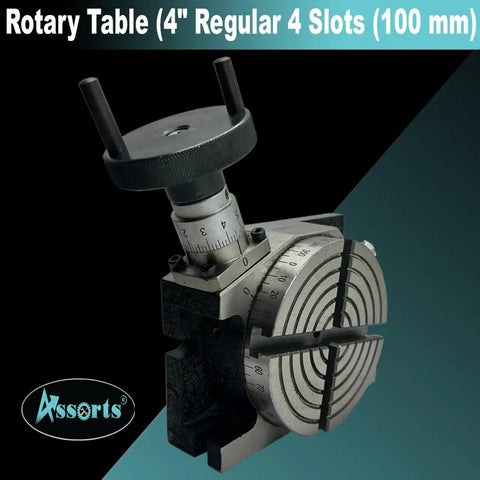

4 Slot T Base Rotary Table For Milling Machines With 4 Inch Diameter 100 Mm Built Like A Tank Horizontal And Vertical Mounting Flexible Workpiece Clamping For Small To Medium Metalworking Projects And DIY Shops

Single 4-Inch Rotary Table for Milling Machines
✔️ 4-slot T-base, horizontal/vertical mounting, 360° graduation < p>Compact precision rotary table designed for small to mid-size milling machines. With a 100 mm diameter and a four-slot T-base, it offers flexible mounting and solid workpiece clamping. It supports horizontal and vertical orientations for a wide range of machining tasks, and its worm-gear drive delivers smooth, repeatable indexing. A 360° graduation edge helps with accurate positioning, while rugged cast iron construction ensures long life in heavy milling environments. Compatible with independent or self-centering chucks, backplates, dividing plates, and T-nut kits.

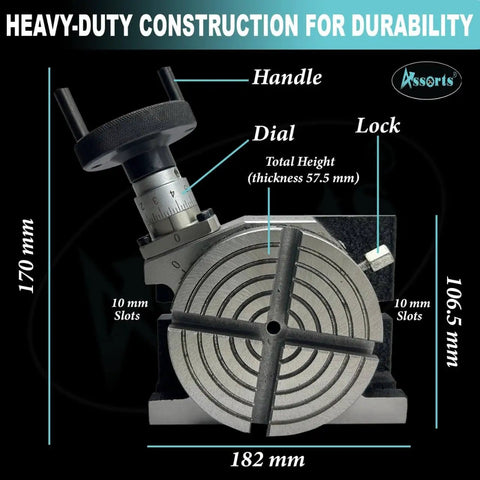

Dimension	Value
Table diameter	100 mm (4 in)
Slot base	4-slot T-base
Mounting orientation	Horizontal or Vertical
Drive	Worm-gear, 1:36
Graduation	360°
Center height	≈50 mm (≈2-1/16 in)

✅ 100 mm diameter table with 4-slot T-base

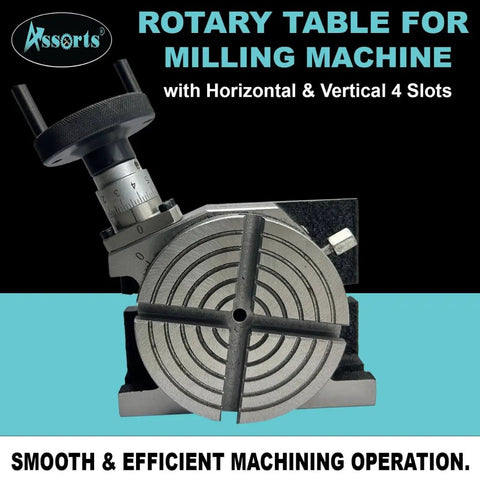

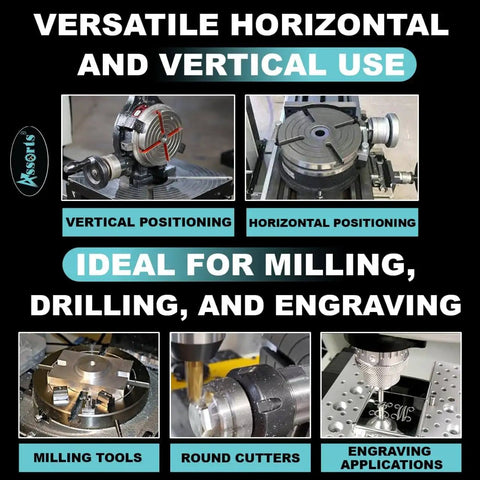

✅ Horizontal & vertical mounting options
✅ Worm-gear drive 1:36; approx 10° per full turn

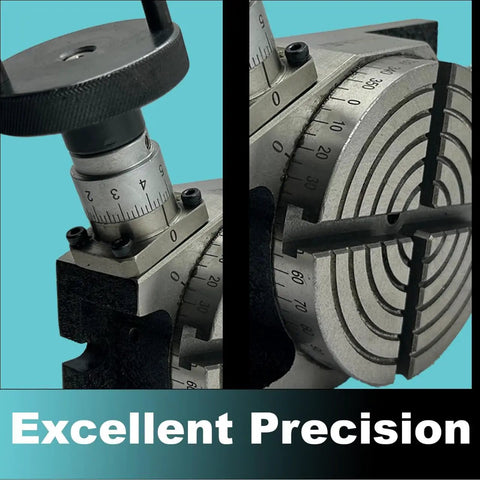

✅ 360° graduations for precise indexing

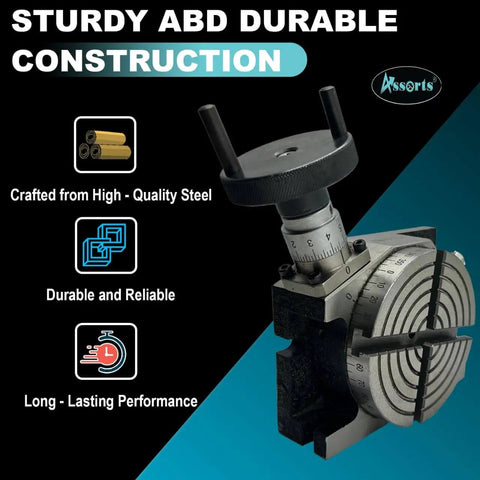

✅ Durable cast-iron construction for heavy milling

💡 What is a handy way to use a rotary table in metalworking?

- precise angular indexing for drilling, arc milling, and gear cutting - handy with dividing plates and T-nut kits for custom fixtures - improves repeatability and accuracy in jig setups
