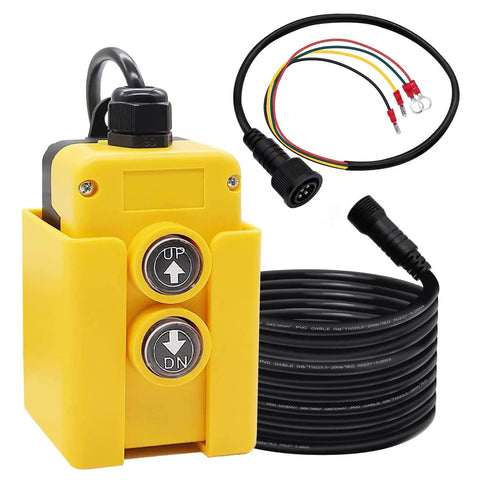

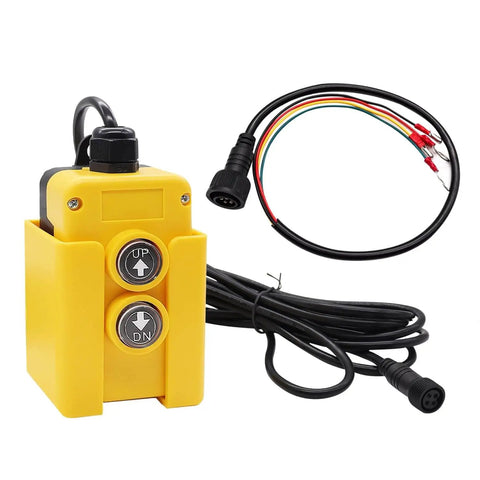

4 Wire Dump Trailer Remote Control Switch 12V DC Up Down Momentary Dual Button Control For Double Acting Hydraulic Pump Power Unit Ideal For Truck Lift Gates Cranes And Wreckers MG018 4W

Compact 12V Up/Down Dump Trailer Remote Switch single unit
✔️ 2.8x2.1x5.4 in ABS, 4m wire, momentary UP/DOWN; 12VDC

This 4-wire remote control switch enables remote operation of a double-acting hydraulic pump, making it ideal for dump trailers, liftgates, cranes, wreckers, and other heavy equipment. Its ABS shell is heat- and corrosion-resistant, and the unit is designed to be dustproof and waterproof for outdoor use. A magnet-back base and a separate mounting bracket provide flexible placement options for quick access.

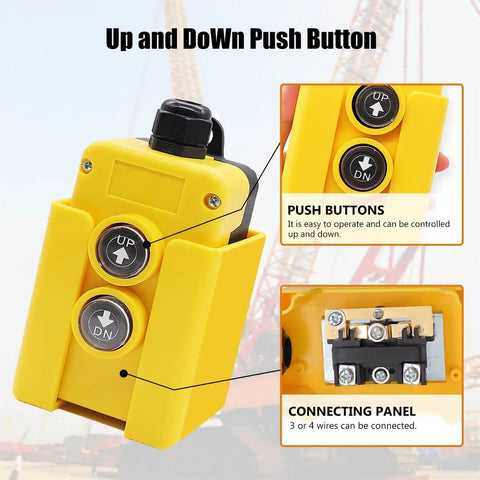

✅ 12V DC operation with momentary UP/DOWN dual-button control
✅ 4-wire wiring: Green-RAISE, Red-POWER, Black-START, Yellow-DOWN

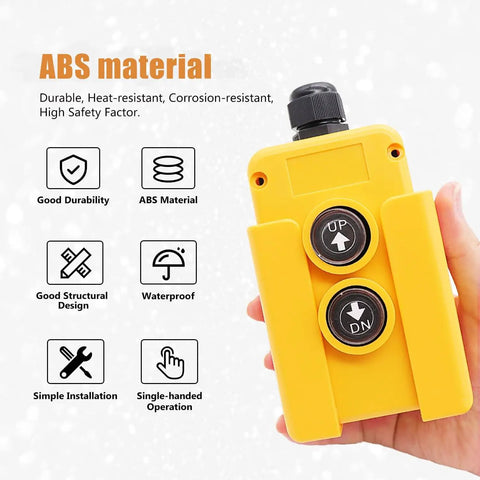

✅ ABS housing resists heat and corrosion; dustproof and waterproof
✅ 4 m (13 ft) lead length for convenient reach from operator to system

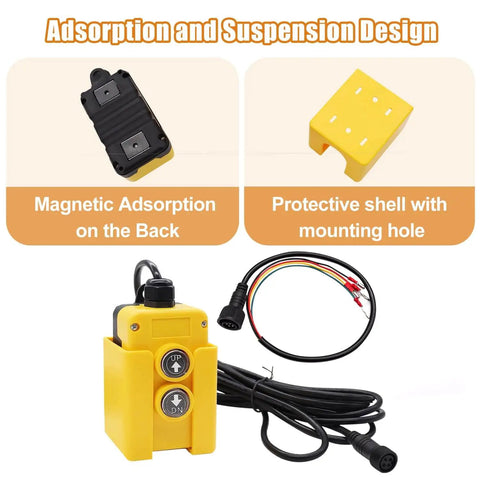

✅ Includes mounting bracket and magnet-backed mounting option

💡 What is a 12V DC remote switch used for with dump trailers and hydraulic pumps? This handy device gives safe, distance-based control of a double-acting pump.

- It provides UP and DOWN commands to raise or lower loads
- It works with most double-acting hydraulic pump stations found on trailers and cranes
- The rugged ABS shell and mounting options support outdoor, on-site use
