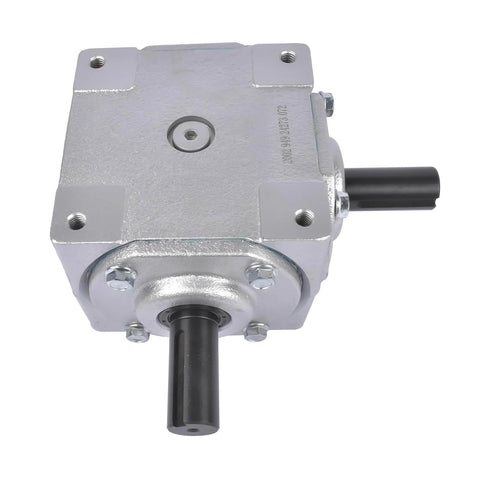

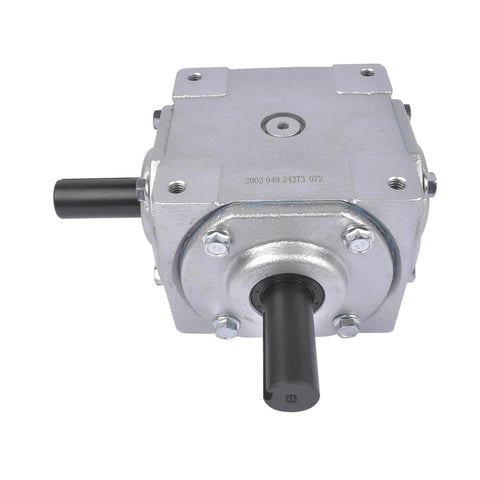

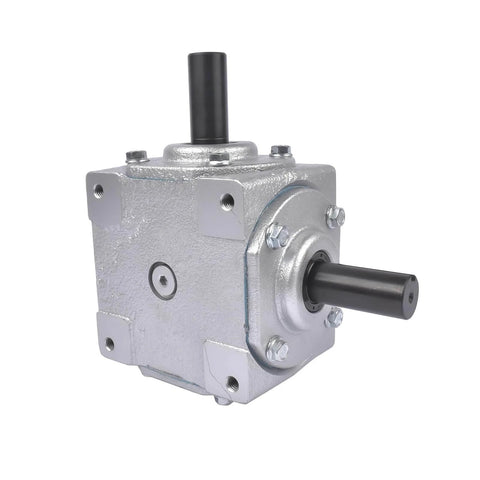

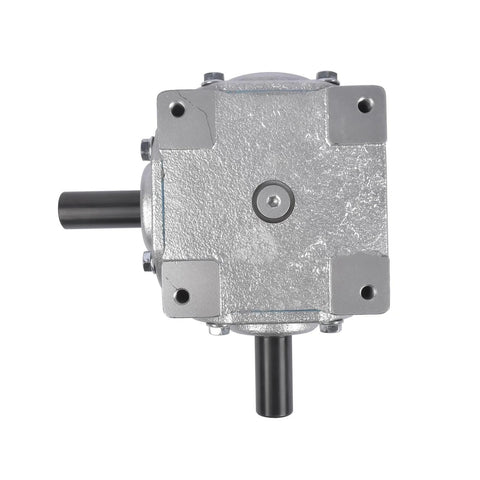

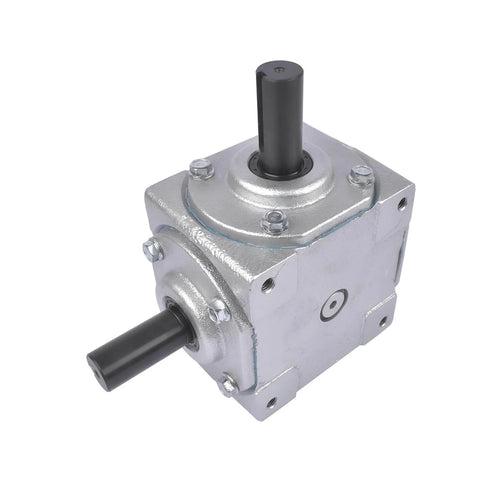

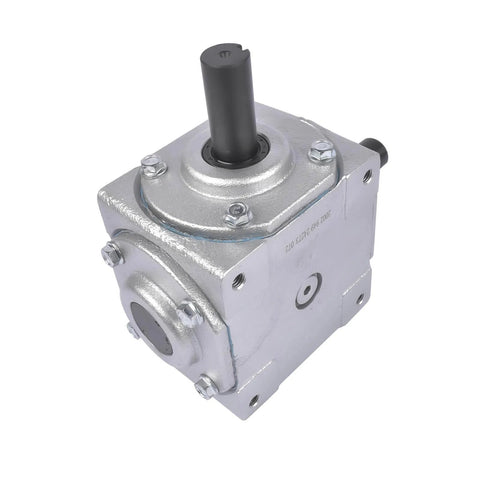

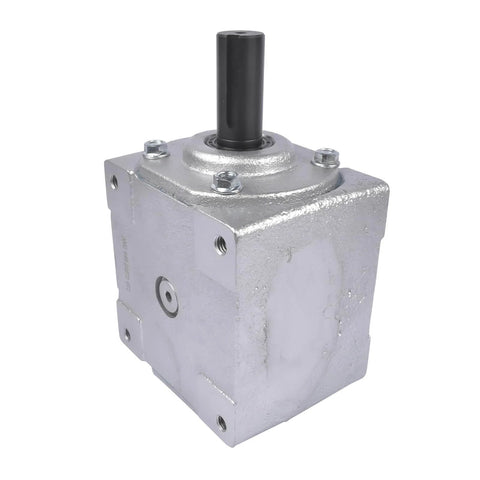

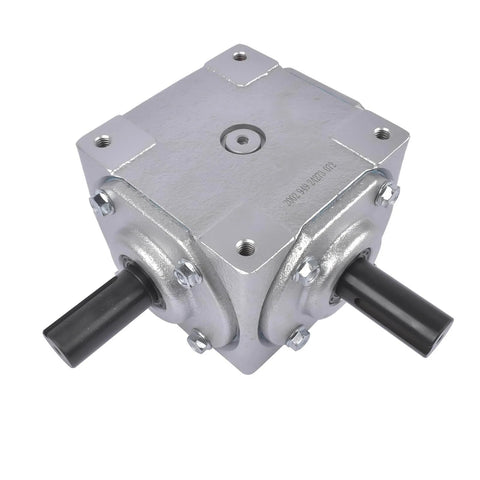

40 HP Right Angle Bevel Gearbox 1:1 with 1 Inch Keyed Shafts

40 HP Right Angle Bevel Gearbox with 1 Inch Keyed Shafts
✔️ 1:1 Ratio Crosshole Gear Drive CW to CW

This right angle bevel gearbox is built to transfer power at a 90 degree angle in machinery that needs straight through speed with direction change. It is commonly used in conveyors, agricultural equipment, and industrial drive systems where strong torque handling and stable rotation are required. Pack size is one gearbox.

✅ Gearbox type: right angle bevel gearbox
✅ Power rating: up to 40 HP
✅ Gear ratio: 1:1
✅ Maximum input speed: 1800 RPM
✅ Shaft rotation: CW to CW
✅ Input shaft size: 1 inch diameter x 2 1/4 inch length
✅ Output shaft size: 1 inch diameter x 2 1/4 inch length
✅ Keyway size: 1/4 inch
✅ Housing material: cast iron
✅ Sealed housing to protect gears and taper roller bearings
✅ Bolt pattern: 4 1/4 inch square with 3/8 inch tapped holes

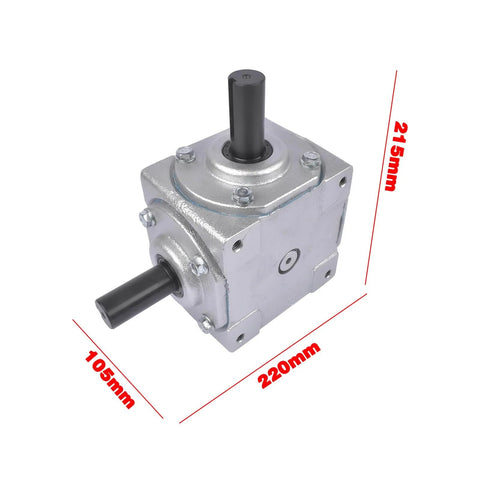

✅ Overall dimensions: 5 7/8 inch x 6 1/4 inch x 4 1/8 inch
✅ Ships without oil
✅ Quantity: 1 gearbox

💡 Why use a 1:1 right angle bevel gearbox in power transmission systems?
It is used when you need to change drive direction without changing speed or torque ratio.

• Bevel gear design redirects rotation by 90 degrees efficiently

• Keyed shafts allow secure coupling to motors and driven equipment

• Cast iron housing supports heavy loads and reduces vibration

• Equal input and output speed helps keep system timing consistent

This gearbox is a handy solution for moving power around corners while keeping speed steady and performance strong in demanding mechanical setups.
