4mm to 5mm Rigid Flanged Coupler Shafts connector
VXB

4mm to 5mm Rigid Flange Coupling - Shaft Connector for Motors


$38.06 CAD $51.37 CADyou save $13.31 CAD
SKU: 4-5MM-COUPLER-SHAFT-CONNECTOR
UPC: 00193019146637

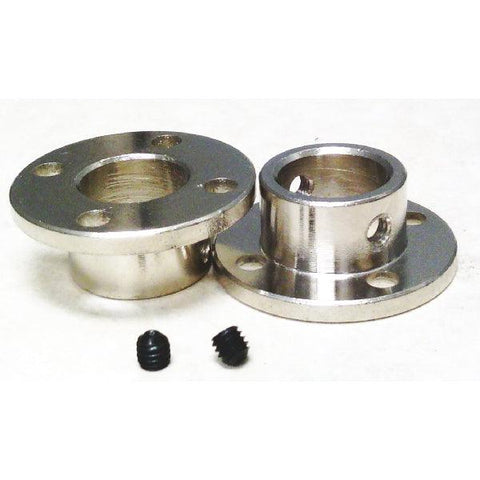

4mm-5mm Rigid Flange Coupling - Shaft Connector for Motor or Guide Rods



 4mm to 5mm Flange Coupling Motor Guide Shafts Connector. The coupler includes 2 flanges, one 4mm bore and one 5mm bore, so you can transmit rotation from a 4mm diameter shaft to 5mm diameter shaft

  • Inner Diameter 1: 4mm
  • Inner Diameter 2: 5mm
  • Cylindrical Diameter: 10mm
  • Overall Height: 12mm
  • Bottom Diameter: 22mm
  • Fixed Hole Screw: M3
  • Fixed Hole Distance: 16mm
