5/8-18 Heim Joint Rod End Kit, chromoly rod ends with left and right hand thread, reinforced polyurethane bushings, zinc plated carbon steel, includes jam nuts and tube adapters for 4 link suspension, steering and traction bar builds

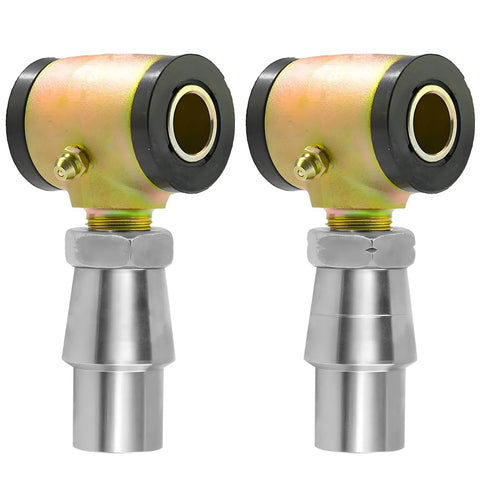

5/8 inch Heim Joint Rod End Kit with Polyurethane Bushings
✔️ Left and Right Hand 5/8-18 Threaded Rod Ends for Suspension and Steering

This 5/8 inch heim joint rod end kit is built for suspension and steering systems that need strength, adjustability, and controlled movement. It’s commonly used in 4-link setups, panhard bars, steering links, and traction bars where a solid connection with some vibration control makes a big difference.

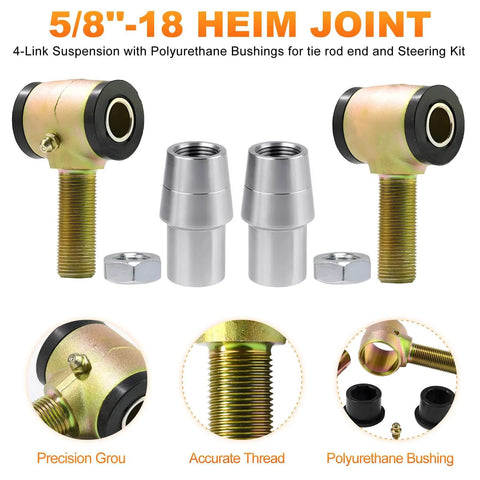

✅ Pack size: 1 set including left-hand and right-hand threaded rod ends, polyurethane bushings, tube adapters, and jam nuts
✅ Thread size: 5/8-18
✅ Rod end bore: 5/8 inch
✅ Material: Heat-treated carbon steel with zinc-plated finish
✅ Bushing material: Reinforced polyurethane to reduce vibration and contamination
✅ Static load capacity: 17955 lb
✅ Adjustable design with jam nuts for secure locking
✅ Weld-ready tube adapters for clean fabrication
✅ Common uses: 4-link and 3-link suspensions, steering links, panhard bars, traction bars, and custom chassis builds

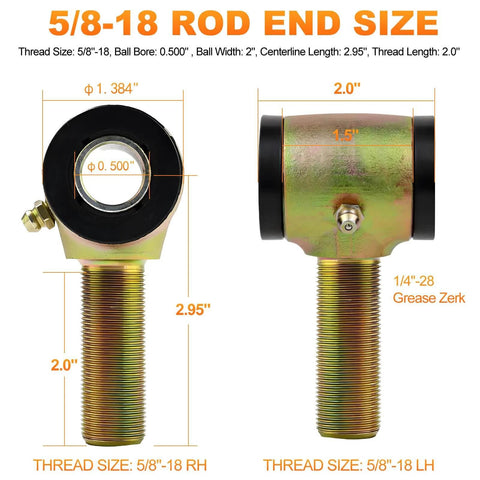

Dimensions
Bore diameter 0.625 inch
Thread size 5/8-18
Tube outer diameter 1.25 inch
Tube wall thickness 0.120 inch

💡 Why are polyurethane-bushed heim joints used in suspension and steering systems?
They help balance strength with reduced vibration and longer service life.

• Polyurethane inserts dampen noise and shock compared to solid metal joints

• Bushings help block dirt and grit that can accelerate wear

• Threaded adjustment allows precise link length tuning without sacrificing strength

This heim joint kit is a handy choice when you want strong linkage control, adjustable geometry, and smoother operation in demanding suspension or steering applications.
