5/8-18 forged steel 4 bar rod end kit, left and right hand thread heim joints with 1/2 inch bore, chromoly construction with polyurethane bushings for suspension links, lift kits, sway bars and custom fabrication, 2 pair set

5/8 inch Forged Steel Heim Joint Rod End Kit for 4 Link Suspension
✔️ Left and Right Hand 5/8-18 Thread x 1/2 inch Bore Rod Ends 2 Pair

This 5/8 inch heim joint rod end kit is made for suspension links and custom fabrication where strength, adjustability, and controlled movement matter. It’s commonly used in 4 link systems, sway bars, lift kits, and custom chassis builds that see hard use on the street, track, or trail.

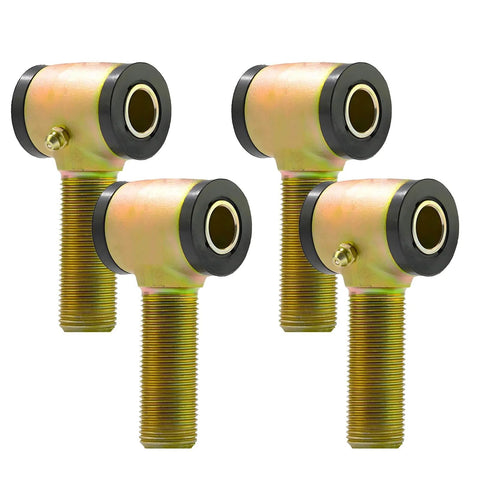

✅ Pack size: 2 pair total, 4 rod ends including left hand and right hand threads with polyurethane bushings and jam nuts
✅ Rod end bore: 1/2 inch
✅ Thread size: 5/8-18

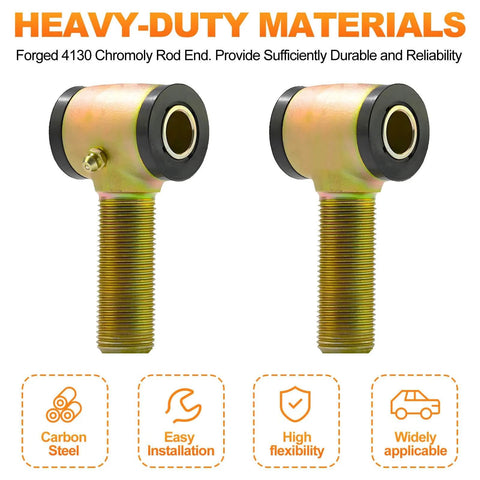

✅ Material: Forged heat treated 4130 chromoly steel
✅ Finish: Zinc plated for corrosion resistance

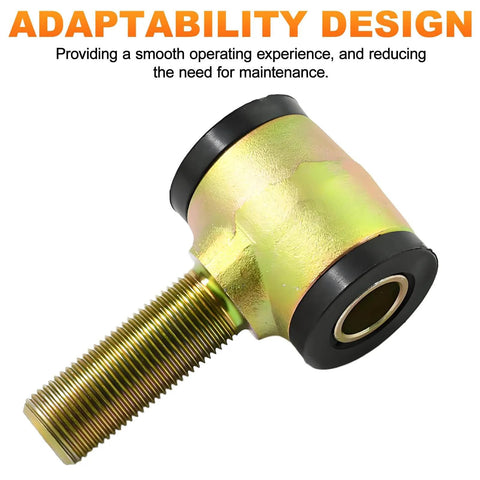

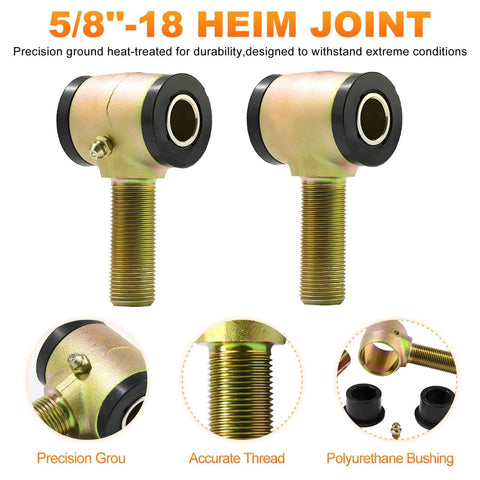

✅ Bushing type: Reinforced polyurethane inserts to reduce vibration and contamination
✅ Static load rating: 17955 lb
✅ Smooth articulation with high angular movement
✅ Designed for adjustable suspension and linkage systems

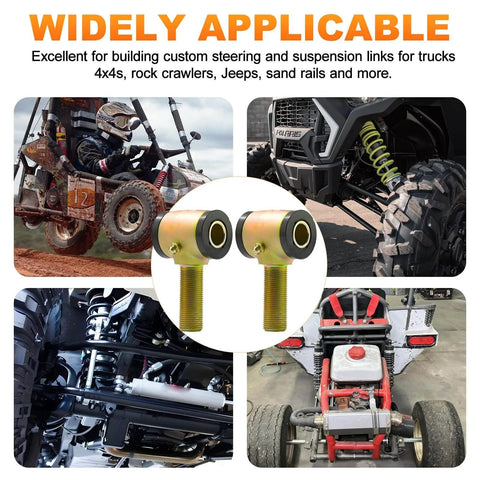

✅ Common uses: 4 link suspensions, panhard bars, traction bars, sway bar end links, lift kits, and custom fabrication

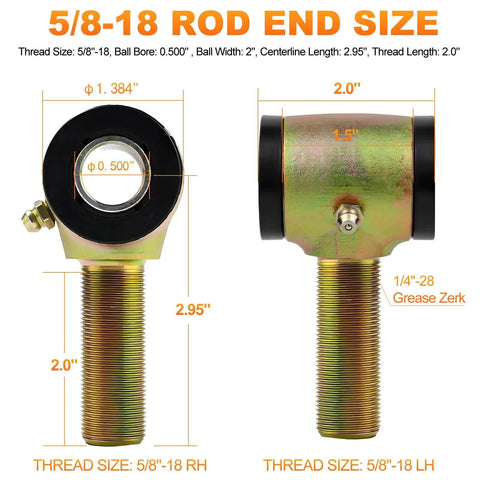

Dimensions
Bore diameter 1/2 inch
Thread size 5/8-18
Overall width 1.50 inch
Ball width 2.00 inch
Thread length 2.00 inch
Center line length 2.95 inch

💡 Why are forged chromoly heim joints with polyurethane bushings used in 4 link suspension systems?
They combine strength, adjustability, and vibration control for demanding suspension geometry.

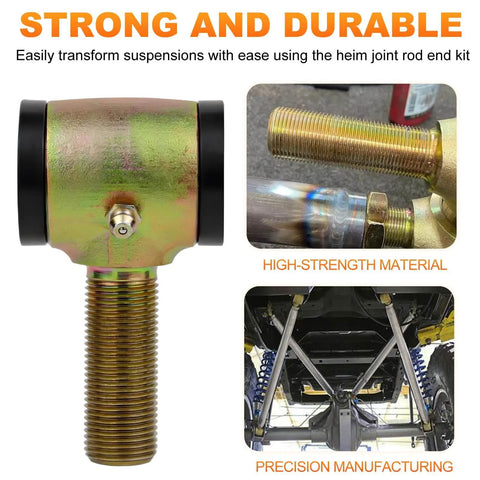

• Forged chromoly construction handles shock loads and torsional stress better than cast parts

• Polyurethane bushings help dampen vibration while protecting the joint from dirt and grit

• Left and right hand threads allow quick length adjustment without removing the link

This heim joint kit is a handy option when you want strong, adjustable suspension links with smoother operation and long service life in tough driving conditions.
