5/8 Heim Joint Rod End Kit 2 Pair with Right and Left Hand Threads, .625 Chromoly Panhard Joints with Spacers, Jam Nuts and Tube Adapters for Steering, Suspension and Traction Bars

5/8 Inch Heim Joint Rod End Kit for Steering and Suspension
✔️ 2 Pair 0.625 Inch RH and LH Chromoly Heim Joints with Spacers

This 5/8 inch heim joint rod end kit is made for steering, suspension, and traction bar links where solid strength and smooth articulation are needed. Supplied as a 2 pair set with full hardware, it’s commonly used on panhard bars and custom linkage builds for hot rods and performance vehicles.

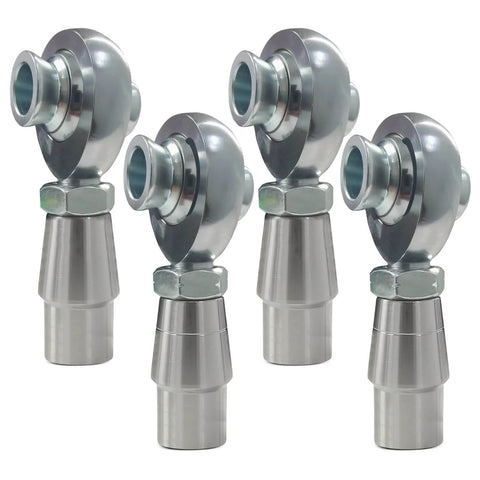

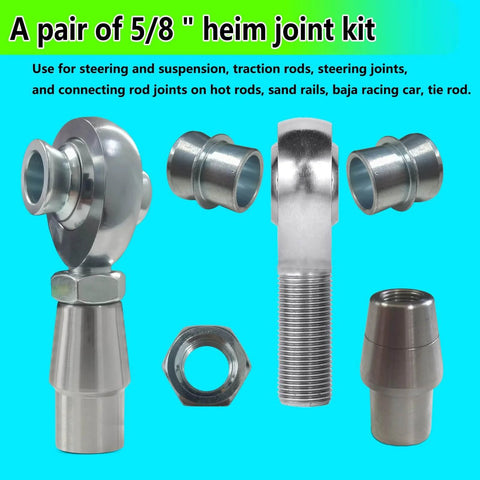

✅ Pack size: 2 pair total, includes 4 heim joints with spacers, tube adapters, and jam nuts
✅ Two right hand and two left hand 5/8"-18 threaded rod ends
✅ Heat-treated chromoly construction with hard chrome plated finish

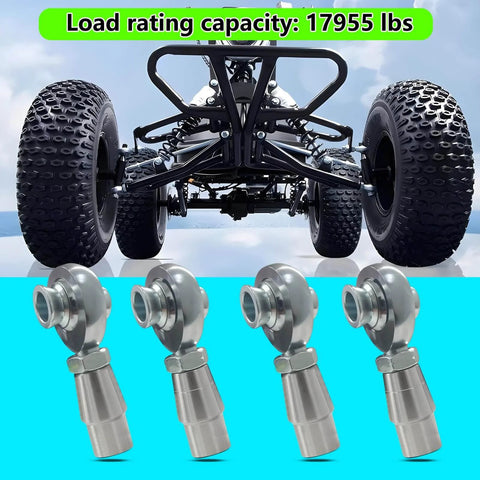

✅ Heavy-duty static load capacity rated up to 17,955 lbs
✅ 5/8 inch bore for strong, stable linkage performance
✅ Includes misalignment spacers for improved angular movement
✅ Designed for MIG and TIG welding during fabrication

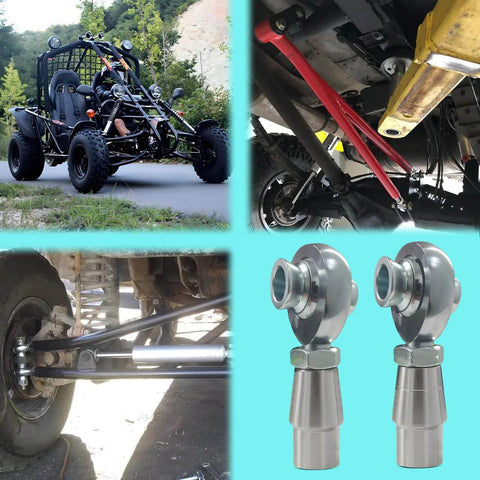

✅ Handy for steering links, suspension arms, traction rods, and linkage joints

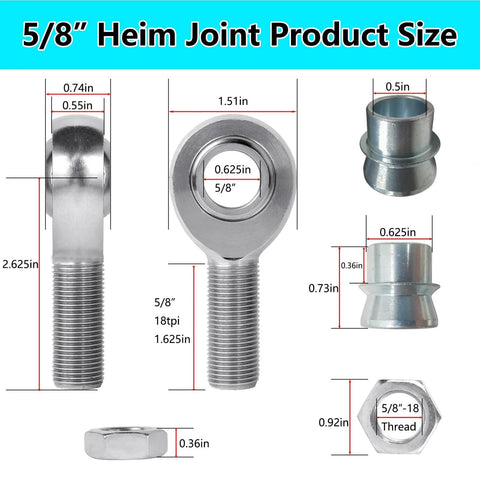

Dimensions and Specifications

Rod End
Thread Size 5/8"-18
Shank Diameter 0.625 in
Ball Bore 0.625 in
Static Load 17,955 lbs

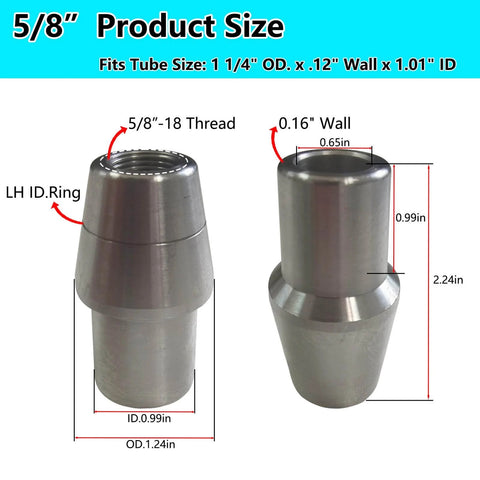

Tube Adapter
Tube OD 1.250 in
Wall Thickness 0.120 in

💡 Why are 5/8 inch chromoly heim joints a popular choice for steering and suspension links?
5/8 inch chromoly heim joints are used when you need a compact joint that still handles real suspension and steering loads.

• Chromoly steel resists fatigue from vibration and impact

• Right and left hand threads allow quick alignment tuning

• Spherical design supports smooth angular movement

• Common tube sizes make fabrication and welding straightforward

This kit is a handy option when you want dependable strength, clean adjustment, and stable performance in steering or suspension systems that see regular real-world use.
