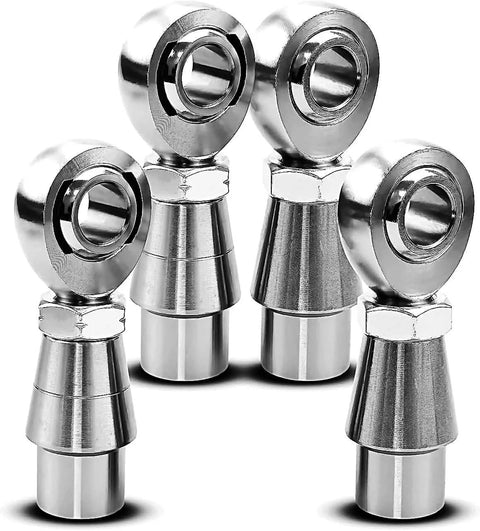

5/8 inch Heim joint rod end kit, chromoly panhard bar joints with left and right hand thread, heat treated and hard chrome plated, includes tube adapters and jam nuts for steering, suspension, traction rods and custom linkage builds, 2 set

5/8 inch Chromoly Heim Joint Rod End Kit for Steering and Suspension
✔️ Left and Right Hand Thread 5/8 inch Panhard Bar Kit with Adapters 2 Set

This 5/8 inch heim joint rod end kit is built for adjustable steering and suspension links where strength, smooth articulation, and easy tuning matter. It’s commonly used on traction rods, sand rails, A-arms, race cars, and hot rods that see real load and constant movement.

✅ Pack size: 2 complete sets including right-hand and left-hand threaded heim joints with tube adapters and jam nuts
✅ Rod end bore: 5/8 inch
✅ Thread size: 5/8 inch RH and LH

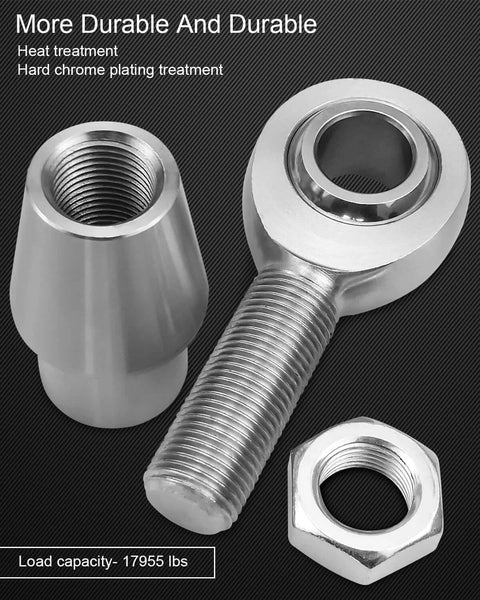

✅ Material: Heat-treated chromoly steel
✅ Finish: Hard chrome plated for wear and corrosion resistance
✅ Static load rating: 17955 lb
✅ Adjustable RH and LH threads for quick on-vehicle tuning
✅ Weld-ready fittings compatible with MIG and TIG welding

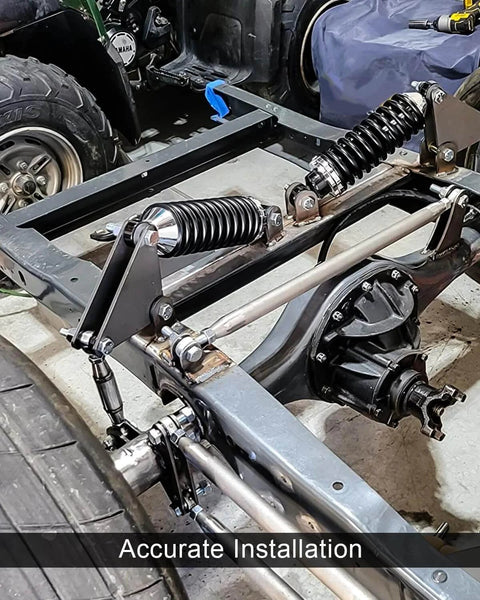

✅ Common uses: Steering links, suspension links, panhard bars, traction rods, chassis connections

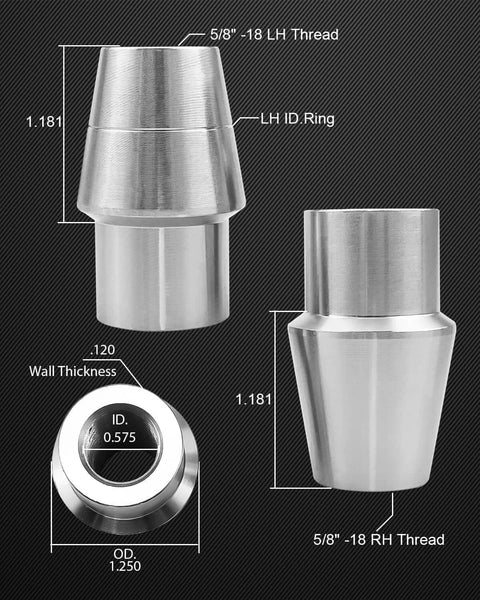

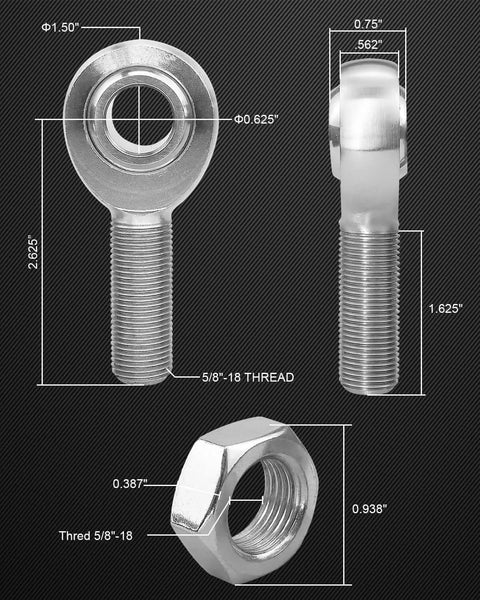

Dimensions
Bore diameter 5/8 inch
Thread size 5/8 inch
Tube outer diameter 1 1/4 inch
Tube wall thickness 0.120 inch
Tube inner diameter 0.79 inch

💡 Why are 5/8 inch chromoly heim joints used in adjustable steering and suspension systems?
They deliver a strong balance of load handling, articulation, and adjustability.

• Heat-treated chromoly resists shock loads and vibration

• Right and left hand threads allow fast alignment changes without removal

• Spherical bearing design keeps movement smooth under suspension travel

This heim joint kit is a handy choice when you want dependable strength, clean adjustment, and smooth performance in demanding steering and suspension builds.
